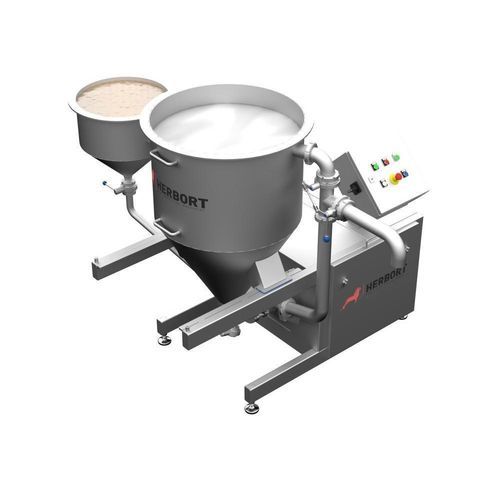

Homogenizer 159 C

The homogenising machines are extremely suitable for mixing, stirring, spreading and homogenising of liquid to highly viscous products. With the homogeniser 159C it is possible to produce sauces of all quality levels. Here, the individual ingredients are added directly into the product reservoir or through a side funnel. The product circulates between the product reservoir and the mixing unit until it has reached its desired density, after which the final product is pumped out of the machine. - Paddle mixing unit: The optional paddle mixer in a homogenizer helps with pre-mixing, circulation, and handling viscous products, ensuring a consistent feed into the homogenizing system and a smoother, more uniform final product. - Homogeniser and mixer unit 159M: The new additional and optional unit makes homogenising and mixing possible in a single production step by adjusting the perforated discs. - Unit 159 M - Homogenising - Adjusting - Mixing Technical Specifications: - Container capacity: 320L - Batch size: 200L - Transfer speed (water): 500L/min - Power mixing unit: 9-11 Kw - Speed mixing unit: 1500-3000 tr/min - Noise level: 70dB - Weight: 450Kg Operations: Sauces & coating Product group: Sauces & Soups Optional paddle mixer for pre-mixing and handling viscous products Additional/optional unit for combined homogenising and mixing in one step
