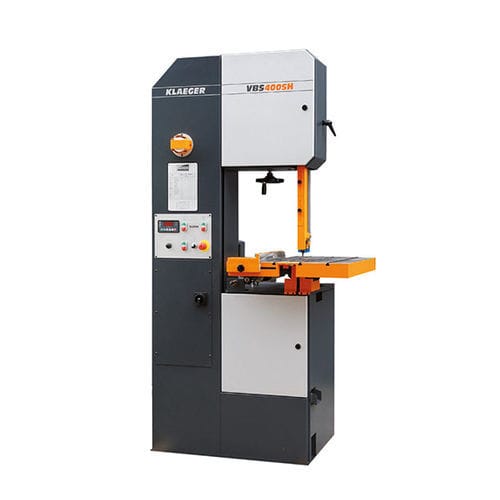

Band saw VBS 400 SH

for non-ferrous metalsfor aluminumfor steel

– hydraulic movable table (available also with fixed table or manual table) – high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc. Available also with standard cutting speed to cut steel. KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more. Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop. Standard machine features Continuous band speed Digital speed display Hardened and grinded sawblade guide Height-adjustable guide arm Cutting data table with lots of materials Integrated LED workstation light Cutting capacity Type of table - hydraulic table Cutting width - 400 mm Cutting height - 390 mm Technical data Table size - 600 x 760 mm with 4 T- Sawblade length - 3600 mm Sawblade width - 4 – 20 mm Dimensions H/W/D - 2225 x 1120 x 870 mm Weight - 530kg Colour - anthracite/silver RAL 7 Drive specification - Three-phase motor, contro Cutting speed - continuous 15-1000 m/m Connected load - 4.0 kW; 7.5 A
