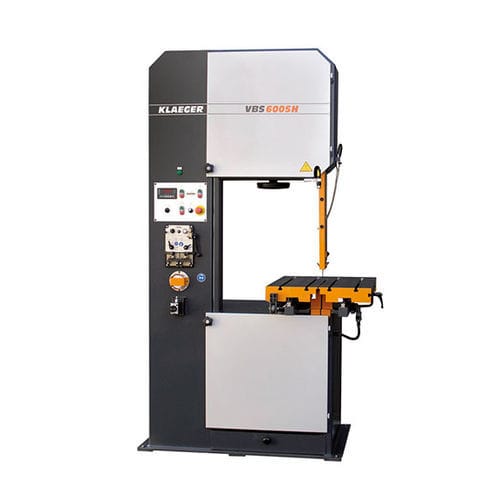

Band saw VBS 600 SH

for non-ferrous metalsfor aluminumfor steel

– hydraulic movable table (available also with fixed table or manual table) – high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc. KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more. Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop. Standard machine features Continuous band speed Digital speed display Hardened and grinded sawblade guide Height-adjustable guide arm Cutting data table with lots of materials Integrated LED workstation light Cutting capacity Type of table - hydraulic table Cutting width - 600 mm Cutting height - 555 mm Technical data Table size - 600 x 760 mm with 4 T-slots Table load capacity - 500 kg Sawblade length - 5060 mm Sawblade width - 13 – 27 mm Dimensions H/W/D - 2555 x 1420 x 1365 mm Weight - 960 kg Colour - anthracite/silver RAL 7016 / RAL 9006 Drive specification - Drive motor, controlled electronically Cutting speed - continuous 15-1000 m/min.
(only with max. 27 mm Band) Connected load - 4.0 kW; 7.5 A
