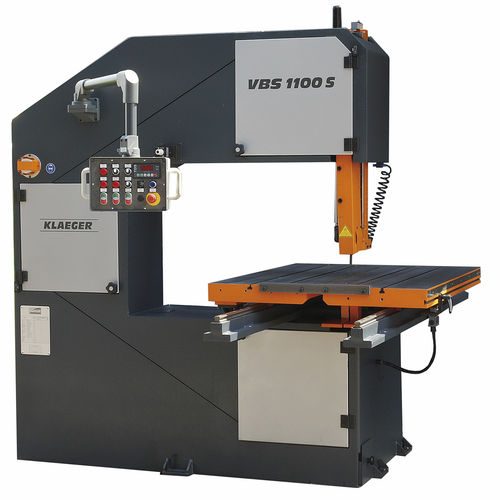

Band saw VBS 1100 S

verticalfor aluminumfor steel

– fixed table (available also with hydraulic table) – high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc. KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more. Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop. Standard machine features - Continuous band speed - Digital speed display - Hardened and grinded sawblade guide - Height-adjustable guide arm - Cutting data table with lots of materials - Integrated LED workstation light - Hydraulic sawblade tension Cutting capacity Cutting width - 1100 mm Cutting height - 690 mm Technical data Table size - 1000 x 1150 mm Table load capacity - 800 kg Sawblade length - 5670 mm Sawblade width - 13 – 27 mm (*) Dimensions H/W/D - 2570 x 2420 x 1300 mm Weight - 1650 kg Colour - anthracite/silver RAL 7016 / RAL 9006 Drive specification - Drive motor, electronically controlled Cutting speed - at a ratio of 1:10
(for example 100-1000m/min.) Connected load - 4.0 kW; 7.5 A
