Chemical pump ATDP series
air-drivenindustrialhydrostatic pressure test

chemical pump
chemical pump
Add to favorites
Compare this product

Characteristics

Media
for chemicals
Operation
air-driven
Domain
industrial
Applications
hydrostatic pressure test
Flow

Max.: 32.2 l/min (8.5063 us gal/min)

Min.: 0.4 l/min (0.1057 us gal/min)

Pressure

Max.: 1,489 bar (21,596.119 psi)

Min.: 87 bar (1,261.828 psi)

Description

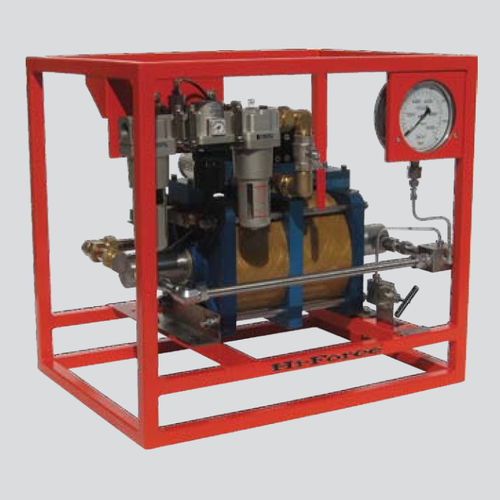

The Hi-Force ATDP series of twin double acting air driven hydrostatic pressure testing pumps offer a choice of 3 models with output pressure capacities ranging from 87 Bar (1260 PSI) to 1489 Bar (21600 PSI). The twin double acting design offers a much higher displacement volume per stroke than the smaller AHP & AHP2 series, making it ideal for prefill as well as pressure testing. All models are supplied with a 150mm diameter glycerine filled vibra-gauge (calibrated on request), inlet airline filter, lubricator and regulator unit, pump start/stop valve and fluid strainer. Viton and ethylene propylene seals for handling special fluids or chemicals can be factory fitted prior to delivery if required. Other seal materials are available on request. Air consumption 212 scfm (6m3 / minute) Suitable for use with various fluids including water 150mm dual scale glycerine filled gauge Infinitely variable output pressure and flow Fitted with inlet air filter, regulator & lubricator Optional extras include stainless steel frame work, pneumatic or LCD stroke counter system, onboard chart recorder, pressure isolation valve and wheel mounting
