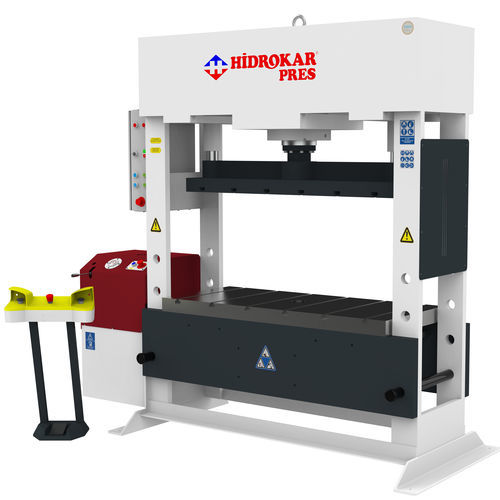

Hydraulic press SATmotorizedstampingbending
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Function
- stamping, bending, straightening, blanking, for molding
- Structure
- with motorized movable piston, H-frame, with lifting table, traveling-head
- Control
- automatic, PLC-controlled
- Other characteristics
- custom, shop, high-speed
- Applications
- for steel, for tools, for hydraulic applications
- Force
Min.: 100 tf
Max.: 150 tf
- Opening
Max.: 2,000 mm
(79 in)Min.: 500 mm
(20 in)1,050 mm
(41 in)- Stroke
Min.: 300 mm
(12 in)Max.: 300 mm
(12 in)- Table width
Min.: 500 mm
(20 in)Max.: 600 mm
(24 in)- Table length
Min.: 1,000 mm
(39 in)Max.: 1,500 mm
(59 in)- Max. pressure
Max.: 260 bar
(3,771 psi)Min.: 245 bar
(3,553 psi)- Working speed
Min.: 5 mm/s
Max.: 9 mm/s
- Return speed
Min.: 13 mm/s
Max.: 14 mm/s
- Approaching speed
Min.: 9 mm/s
Max.: 9 mm/s
- Overall length
Min.: 2,110 mm
(83 in)Max.: 2,630 mm
(104 in)- Overall width
Min.: 1,000 mm
(39 in)Max.: 1,100 mm
(43 in)- Overall height
Min.: 2,350 mm
(93 in)Max.: 2,450 mm
(96 in)
Description
In addition to its adjustable down table mechanism, its t-slot
table allows it to be mounted and processed on many different types of workpieces. In this way, most of the sheet metal forming operations can be done with the SAT model using the necessary molds and apparatus.
STANDARD FEATURES
Robust steel construction
Hydraulic unit requiring minimum maintenance
Emergency stop button
Hydraulic safety system
Electrical safety system
CE certification
User manual
T-slot table
OPTIONAL FEATURES
PLC control system
HMI touch screen
Proportional valve system
Light barrier
Security cage
Tool box
Switch distance limit setting
Linear scale distance limit setting
Stroke indicator
Lighting led panel
