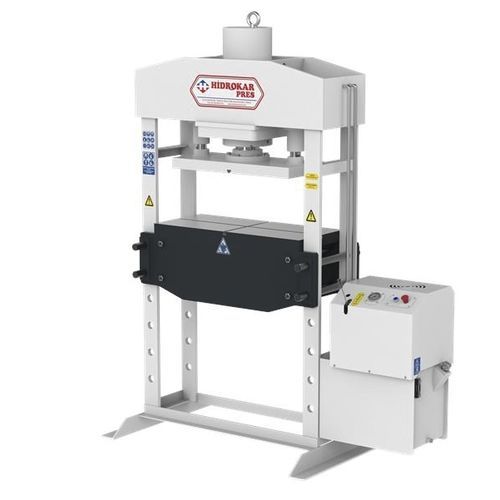

Hydraulic press SDTmotorizedstraighteningcompression
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Function
- stamping, bending, straightening, for production, compression, assembly, sealing, ironing
- Applications
- for steel, for tools
- Structure
- table type, portal
- Control
- semi-automatic, fully-automatic, PLC-controlled
- Other characteristics
- vertical, custom-made, shop, cold
- Force
Max.: 300 tf
Min.: 30 tf
50 tf, 100 tf, 150 tf, 200 tf
- Opening
Max.: 2,000 mm
(79 in)Min.: 500 mm
(20 in)1,250 mm
(49 in)- Stroke
Max.: 400 mm
(15.748 in)Min.: 200 mm
(7.874 in)400 mm
(15.748 in)- Table width
Max.: 650 mm
(26 in)Min.: 400 mm
(16 in)- Table length
Max.: 1,500 mm
(59 in)Min.: 1,000 mm
(39 in)- Max. pressure
Min.: 250 bar
(3,626 psi)- Working speed
Min.: 9,000 mm/s
(29.5 ft/s)6 mm/s, 7 mm/s, 9 mm/s
- Return speed
Min.: 15 m/s
(49.2 ft/s)0 m/s, 9 m/s, 11 m/s, 14 m/s
- Approaching speed
Min.: 15 mm/s
- Weight
Max.: 3,000 kg
(6,614 lb)Min.: 600 kg
(1,323 lb)1,075 kg, 1,450 kg, 2,390 kg, 3,150 kg
(2,370 lb, 3,197 lb, 5,269 lb, 6,945 lb)- Overall length
1,450 mm, 2,000 mm
(57 in, 79 in)- Overall width
900 mm, 1,000 mm
(35 in, 39 in)- Overall height
2,300 mm, 2,350 mm, 2,465 mm, 2,650 mm
(91 in, 93 in, 97 in, 104 in)
Description
In addition to its adjustable down table mechanism, its t-slot
table allows it to be mounted and processed on many different types of workpieces. In this way, most of the sheet metal forming operations can be done with the SDT model using the necessary molds and apparatus.
STANDARD FEATURES
Robust steel construction
Hydraulic unit requiring minimum maintenance
Emergency stop button
Hydraulic safety system
Electrical safety system
CE certification
User manual
Hand-lever control
Adjustable bottom plate mechanism
T-slot table
Adjustable pressure control
OPTIONAL FEATURES
Button control
PLC control system
HMI touch screen
Light barrier
Safety cage
Lighting led panel
