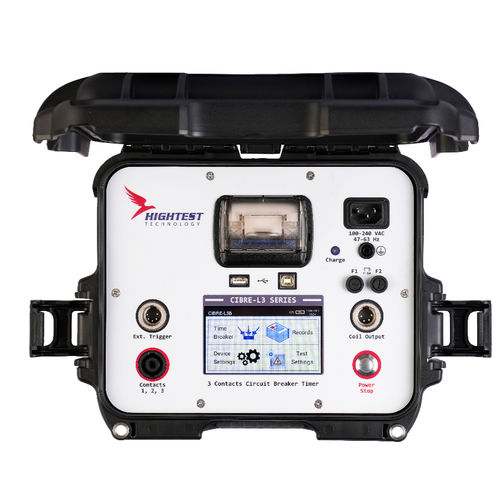

Circuit breaker analyzer CIBRE-L3 series

with built-in printerbattery-poweredwith touchscreen

CIBRE-L3 Series, 3-Contact Circuit Breaker Timers are designed using advanced engineering technology to test contact timings of circuit-breakers. CIBRE-L3 Series have fast, easy and accurate measurement features by its user-friendly software. CIBRE-L3 Series are battery-powered devices (optional feature), which allow users to perform tests even without power supply during field tests. Why do we need to test circuit breakers? It is very important to test circuit breakers regularly. Contact Timing Tests are performed to determine the optimal performance of the breakers. The testing can determine improper breaker operations in case of system fault and to improve system reliability. Contact Timing Tests Contact timing tests are performed to compare the breakers' main & resistor contact performance against the manufactures specifications. The breakers OPEN, CLOSE, OPEN-CLOSE, CLOSE-OPEN and OPEN-CLOSE-OPEN operations are timed in milliseconds (ms) and cycles and then compared with the manufacturers' specification to determine the performance of the circuit breaker. CIBRE-L3 Series feature with a 4.3-inch large colour touch display, which is visible under both bright sunlight as well as dim light conditions. Operators can easily print the measurement results with the 2.25-inch built-in printer of CIBRE-L3 Series. The results can also save to a USB flash drive or to the device's internal memory. Multi-language capability and user-friendly operation menu make it easy to control CIBRE-L3 Series. CIBRE-L3 Series devices are light-weight, compact and rugged with the protection of IP67 (case closed) which makes it perfect for the field test.
