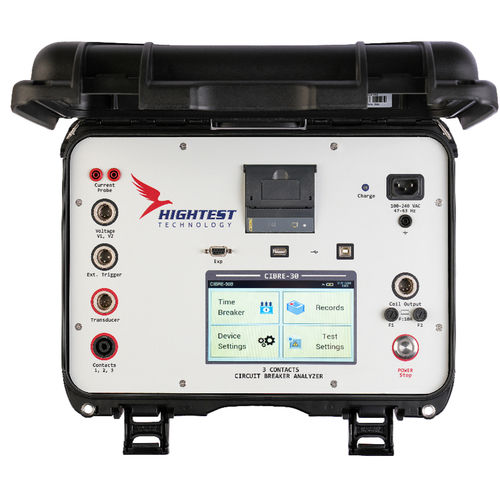

Circuit breaker analyzer CIBRE-30

with built-in printerbattery-poweredBluetooth

CIBRE-30 Series, 3-Contact Circuit Breaker Analysers are designed using advanced engineering technology to test contact timings of circuit-breakers. CIBRE-30 Series has fast, easy and accurate measurement features by its user-friendly software. CIBRE-30 Series is battery-powered device (optional feature), which allows users to perform tests even without power supply during field tests. Why do we need to test circuit breakers? It is very important to test circuit breakers regularly. Contact Timing Tests and Motion tests are performed to determine the optimal performance of the breakers. The testing can determine improper breaker operations in case of system fault and to improve system reliability. Contact Timing Tests Contact timing tests are performed to compare the breakers' main & resistor contact performance against the manufacture's specifications. The breakers OPEN, CLOSE, OPEN-CLOSE, CLOSE-OPEN & OPEN-CLOSE-OPEN operations are timed in milliseconds (ms) and cycles and then compared with the manufacturers' specification to determine the performance of the circuit breaker. Motion Tests CIBRE-30 Series can perform motion tests such as Transducer Speed, Stroke and Bounce. Slower transducer speed can reduce the breaking capacity of the main contact while faster speed can cause mechanical damage to the damping components and cause excessive vibration. So, it is necessary to test the transducer speed to compare it with manufacture's specifications. CIBRE-30 Series features with a 7-inch large colour touch display, which is visible under both bright sunlight as well as dim light conditions.
