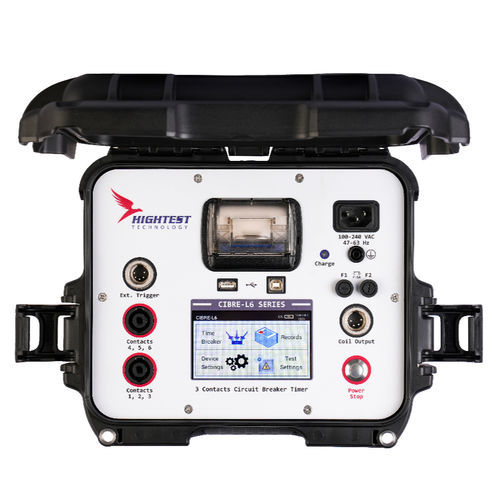

Circuit breaker analyzer CIBRE-L6
portableautomatic

Circuit breaker analyzer - CIBRE-L6 - Hightest Technology - portable / automatic
Circuit breaker analyzer - CIBRE-L6 - Hightest Technology - portable / automatic
Add to favorites
Compare this product

Characteristics

Application domain
circuit breaker
Configuration
portable
Mode of use
automatic

Description

Contact Timing (O, C, O-C, C-O & O-C-O) 6 Dry Contact Inputs Timing Accuracy: 0.05% rdg ± 0.1 ms Timing Windows: 1s, 10s & 20s Contact Detection Range: Closed ≤20 Ω & Open ≥5000 Ω Optional Battery and Bluetooth DMP Software for reporting 2.25” Built-in Printer 4.3” TFT Touch Colour Display Lightweight and Portable Protection Class IP67 (case closed) Weight: 3 kg Dimensions: (12.5x10.1x6.0)″ (31.8x25.7x15.2) cm
