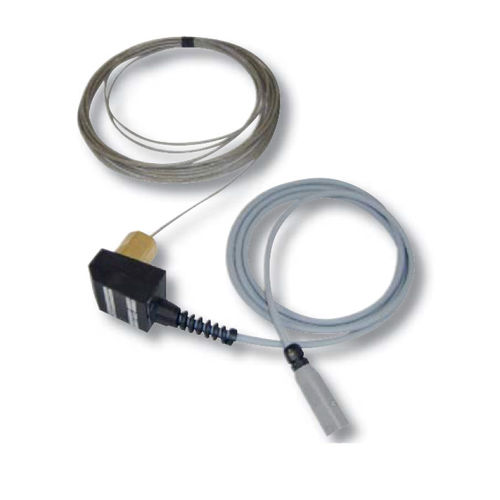

PTFE-insulated heating cable HIE-06 / HIE-16

for pipe trace heatingIP54

The HIE inner heater is very well suited for pre-installed and hoses - the customer can simply insert the single wire heating conductor into them via a screw system and seal using a brass compression fitting. A T-junction is required. Two versions of the HIE are available. HIE-6 with mini controller on the screw fitting for max. 1500 W / 230 V. HIE-16 for a separate controller HTI-16 up to 3600 W / 230 V. Rated voltage - 230 V AC/DC (other voltages 115 to 400 V) Rated power - depending on configuration 5-70 W/m Heating conductor outer diameter - 2 - 5 mm Brass connector head - ½'' internal thread Pressure-resistant - up to 15 bar Temperature measurement - integral heating conductor HTI control system Plug connection - HIE-06: German "Schuko" mains plug HIE-16: plug for HTI-16 Production lengths - 3 - 100 m Connecting cable - 1.5 m Protection type - IP 42, cast IP 44, protection class I
