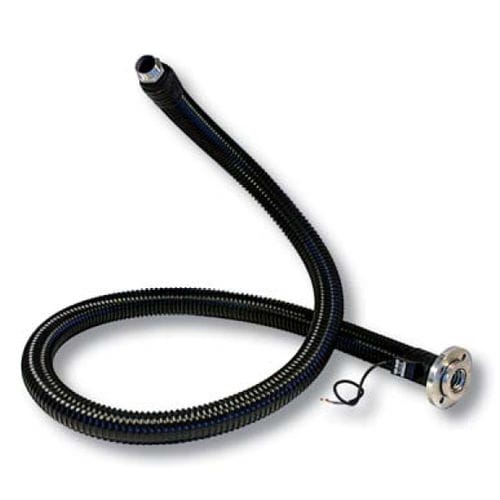

Chemical product hose HE 90/200

for solventsfor oilfor abrasive fluids

HE heating hose has been especially developed by Hillesheim and its special structure makes it suitable for maintaining the temperature of the most diverse types of media, such as chemicals, solvents, oils, greases, and abrasive materials etc. For example, this heated hose can be used for loading and delivery of lorries and ships. An antistatic version is also optional. Rated voltage - 230 V AC/DC (other voltages up to 500 V) Rated power - depending on the configuration Pressure hose type - rubber (NR, NBR, EPDM, SBR), plastic hose (PTFE, PUR, PA, PE), stainless steel corrugated hose Optional: steel spring spiral / suction hose Outer cover - abrasion resistant, weather resistant Hose end caps - PA hard cap, elastomer or aluminium cap Couplings / fittings - flange, couplings: Storz, TW, Kamlok, external thread special fittings: on request Temperature sensor - PT100 Connecting cable - 1.5 m Production lengths - up to max. 40 m Protection type - up to IP44 (EN 60529), protection class I
