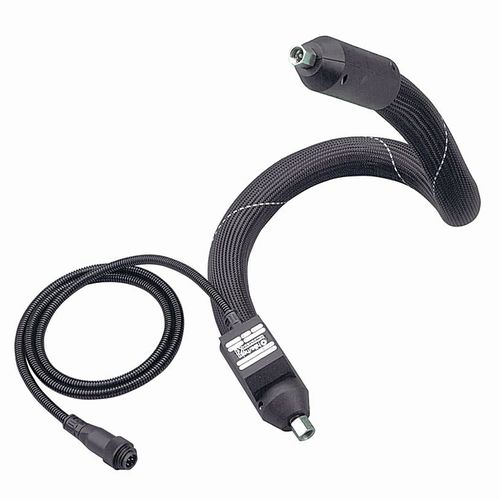

Heat-loss free transport of: oil, grease, resin, tar, paint, water, carbon dioxide, plastic, moulding compounds etc.
Deployable pressure hose made of PTFE of DN 4 – 50 mm; pressure load depending on the nominal diameter up to 600 bar
Rated voltage - 230 V AC/DC (other voltages up to 500 V)
Rated power - Watt/metre, see type codes
Pressure hose type - see Pressure hoses
Connection fitting - steel / stainless steel, see Fittings
Heating - heating conductor, structure according to DIN, moisture-proof with protective braiding
Thermal insulation - heat stabilized, closed-pore
Outer protective braiding - polyamide, black, options possible
Hose end caps - PA hard cap or elastomer cap
Temperature sensor - Fe-CuNi type J, NiCr-Ni type K, PT100 and integral control system (HTI) possible
Connecting cable - 1.5 m
Plug connection - round connector
Production lengths - from 0.3 to 50 m depending on DIN
Protection type - up to IP54 (EN 60529), protection class I
Tolerance - ±10 °C
