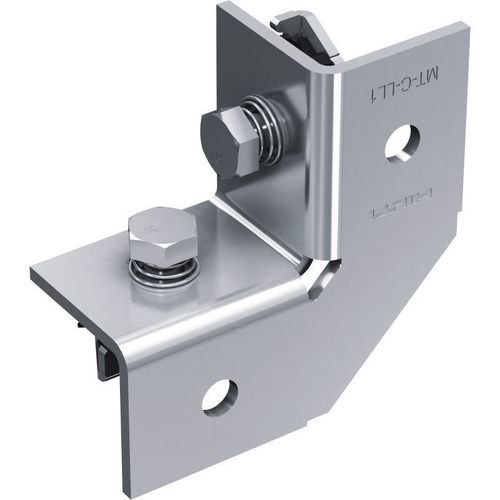

Corner profile connector MT-C-LL1 FL

right-angle

Product overview
Right-angle connector for strut channel assemblies, supplied with a pre-assembled Fast-Lock nut and bolt to speed up installation of modular MEP support structures.

Product identification
Channel connector MT-C-LL1 FL • Item number: 2399637

Key material information

• Material composition: Q235B
• Material and coating: Carbon steel — indoor coated (electro-galvanized finish)
• Material thickness: 4 mm

Features

• Pre-assembled Hilti MT Fast-Lock nut and bolt for reduced on-site assembly steps
• Optimised stock management by lowering the number of separate MT components to purchase and store
• Consistent installation quality through fewer assembly operations, helping reduce installation errors
• Part of the Hilti MT system — modular solution for MEP support structures
• Software and BIM support: PROFIS Modular Support Engineering, BIMCAD content and Revit® families available

Applications

• Fastening L-shaped connections between MT strut channels
• Assembling 2D metal framing for MEP support systems (e.g., strut trapeze)
• Intended for dry, indoor environments

Technical specifications

• Model: MT-C-LL1 FL
• Item number: 2399637
• Material composition: Q235B
• Material and coating: Carbon steel — indoor coated
• Material thickness: 4 mm
• Surface finish: Indoor coated — electro-galvanized
• Tightening torque: 22 ft-lbf
• Weight: 1 lb
• Pack size shown on page: 16 pc
