Pipe support system MP-PS 1-1

Product description

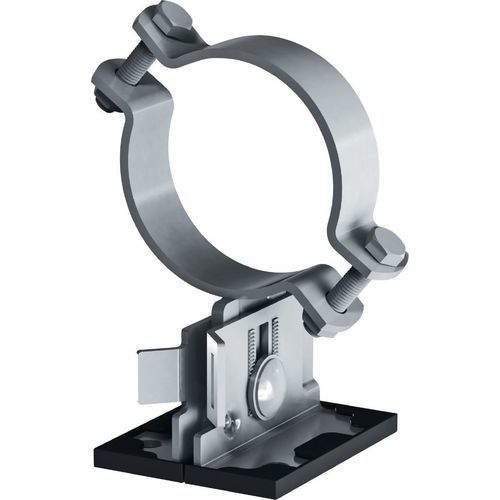

Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications. Suitable for outer pipe diameters from 21 to 173 mm (1/2 in to 6 in).

Summary

• Fire resistance: No
• Temperature resistance: -4 to 572 °F (-20 to 300 °C)
• Material composition: Base plate S280GD / Modified POSMAC-C; Bows & middle plate S235JR (DIN EN 10025); Sliding plate PA66 + GF30; Bolt: Steel grade 8.8; Nut: Steel grade 8

Technical data
Surface finish: Outdoor Coated (HDG). Hot-dip galvanized: Yes. Stainless steel: No.
Material thickness: base plate 4 mm; middle plate 7 mm; sliding plate 3 mm; serrated washer 4 mm.
Temperature resistance: -4 to 572 °F (-20 to 300 °C).
Environmental suitability: Outdoor, low to moderate pollution (C3 / C4 - low).
Applicable base materials: Concrete, steel, modular support systems.
Wrench size: 19 mm. Tightening torque for height adjustment: 36.88 ft-lbf (≈50 Nm). Length: 5.5 in (≈140 mm).
Friction coefficients (sliding plate PA66-GF30): Zinc‑Magnesium 0.146; Hot‑dip galvanized 0.129; Zinc electrogalvanized 0.177.

Features

• One-for-all versatility – same pipe shoe system for fixed, sliding, guided or freestanding supports on modular girders, steel beams and concrete
• Extensive software support – PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and plug-ins
• Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58
• Quicker installation on-site – height and slope can be adjusted after fastening
• Wider clamping range – compatible with various pipes with or without additional inlays

Applications

• Fastening pipes to steel beams, concrete or modular support girders
• Pipe installations in onshore industrial, power generation, pharmaceutical, electronics and automotive facilities
• Suitable for application temperatures up to 300 °C and insulation thickness up to 220 mm
• Recommended for indoor or outdoor use with low to moderate pollution (C3)

Technical specifications

• Model: MP-PS 1-1
• Applicable outer pipe diameters: 21–173 mm (1/2 in to 6 in)
• Surface finish: Outdoor Coated (HDG)
• Material - base plate: S280GD / Modified POSMAC-C
• Material - bows & middle plate: S235JR (DIN EN 10025)
• Sliding plate: PA66 + GF30
• Bolt: Steel grade 8.8; Nut: Steel grade 8
• Material thicknesses: base plate 4 mm; middle plate 7 mm; sliding plate 3 mm; serrated washer 4 mm
• Wrench size: 19 mm
• Tightening torque (height adjustment): 36.88 ft-lbf (≈50 Nm)
• Length: 5.5 in (≈140 mm)
• Temperature resistance: -4 to 572 °F (-20 to 300 °C)
• Hot-dip galvanized: Yes
• Stainless steel: No
• Environmental suitability: Outdoor, low to moderate pollution (C3 / C4 - low)
• Friction coefficients (sliding plate PA66-GF30): Zinc‑Magnesium 0.146; Hot‑dip galvanized 0.129; Zinc electrogalvanized 0.177
