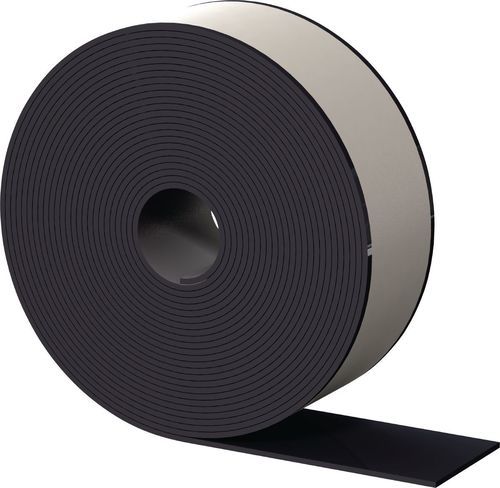

EPDM sealing strip MP-A I-R

for pipesself-adhesivepeel-away

Product summary
EPDM insulating band designed to provide galvanic separation and reduce acoustic transmission when installed on MP-PS pipe shoes. The product features a self-adhesive backing with release liner and adapts to the clamping range of standard MP-PS pipe clamps, eliminating the need for a specific clamp diameter.

Features

• Galvanic separation – prevents direct metal-to-metal contact between pipe clamp and pipe, reducing the risk of galvanic corrosion and acoustic bridging
• Adaptable design – compatible with all MP-PS pipe shoes within the clamps' clamping range (no specific clamp diameter required)
• Self-adhesive layer with release liner for straightforward installation

Applications

• Temperature separation between pipe and clamp to limit heat transfer to the supporting structure
• Surface separation between dissimilar materials to prevent direct contact and potential corrosion
• Acoustic isolation improvement in pipe support systems

Technical specifications

• Fire resistance (Yes/No): No
• Temperature resistance: -4 - 212 °F (-20 - 100 °C)
• Material composition: EPDM, self-adhesive layer, release liner
• Surface finish: n/a
• Hot-dip galvanized: No
• Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
• Base material type: n/a
