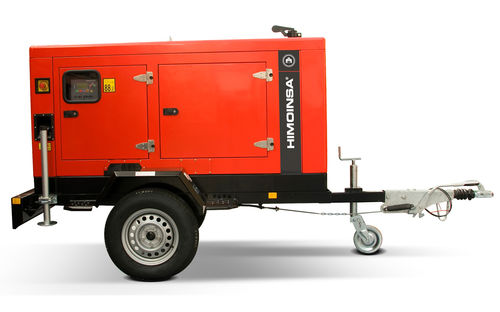

Diesel generator set HYW-35 M6three-phasetrailerable60 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- trailerable
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Applications
- industrial
- Options and accessories
- soundproof
- Power in kVA
Max.: 34 kVA
(46.23 hp)Min.: 31 kVA
(42.15 hp)- Rotational speed
Max.: 1,800 rpm
(11,310 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
This engine model of 4TNV98 GGEH and manufactured by YANMAR has a rated output of 36,4 kW and 40,8 kW on standby, with engine type of diesel 4 strokes-cycle, direct injection type and natural aspiration type. Other mechanical specifications are 4-L cylinders arrangement, bore and stroke of 98X110 mm, displacement of 3,319L, has coolant as cooling system, compression ratio of 18,5. It has a total oil capacity of 10,5L and 9L, has mechanical governor type, air filter type is dry, powered by diesel engine and 12V electrical system. Comes in package of radiator with blowing fan, movable component guards and dry air cleaners.
