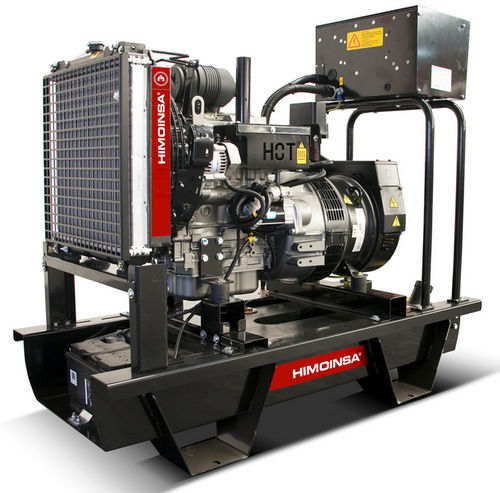

Diesel generator set HYW-17 T5
three-phase50 Hzdirect fuel injection

Diesel generator set - HYW-17 T5 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Diesel generator set - HYW-17 T5 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Applications
industrial
Power in kVA

Max.: 18.3 kVA
(24.88 hp)

Min.: 17.1 kVA
(23.25 hp)

Rotational speed

Max.: 1,500 rpm
(9,425 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The 4TNV88 BGGEH model manufactured by YANMAR has a Diesel 4-strokes cycle engine and rated output of 16.4 kW prp/17.7kW (standby). Fuel compression on standby is 4.63 l/h. In PRP, fuel consumption ranges from 2.40 l/h at 50% to 4.27 l/h at 100%.A full load of lube oil consumption is 0.27 g/kwh.The inner diameter of the exhaust pipe is 51.6 mm. The bore and stroke is 88x90 mm. Lube oil specifications include AP grade CD.CF/ SAE 3-class 10W30.Total oil capacity ranges from 5.5–7.4 L.This model comes with features such as a dry air filter,dry air cleaner,water separator/decanting filter,radiator guards,hot components,blowing fan for radiator,and a 12V electrical system.
