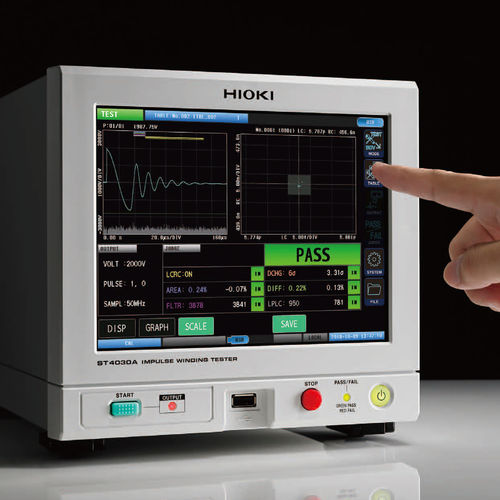

Voltage impulse insulation tester ST4030A

stator windingrotor

IMPULSE WINDING TESTER ST4030A Diagnose the Insulation Quality and Deterioration of Rotor Windings while in Assembled State via Response Waveform Quantification The ST4030A is an impulse winding tester, or surge tester, that combines the functions of both a resistance meter and insulation-withstand testing required for electric motor winding manufacturers to improve quality. Meet the needs of more reliable motor windings in light of the increasing use of electric vehicles and self-driving technology. Key Features • - Identify previously undetectable defects • - Detect waveforms with high precision (200 MHz high speed sampling × high 12-bit resolution) • - Identify single-fault turns via quantification of response waveforms into LC and RC values • - Diagnose defective insulation (pseudo-shorts) between motor windings by testing for microscopic partial discharges hidden in noise (option) Measurement items - • Quantification (LC value, RC value) of the response waveform obtained when impulse voltage is applied, pass / fail judgment • Waveform judgment using AREA value, Flutter, Laplacian etc. • Equipped with dielectric breakdown voltage test function Applied voltage - 100 V to 4200 V (Setting resolution: 10 V steps) Maximum applied energy: approx. 88 mJ Testable inductance range - 10 μH to 100 mH
