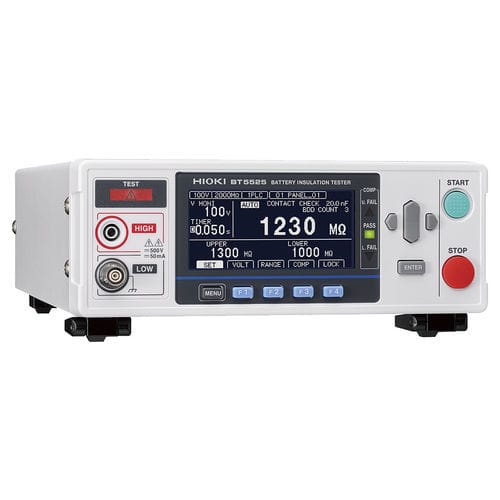

Insulation tester BT5525
insulation resistancebatterycompact

insulation tester
insulation tester
insulation tester
insulation tester
insulation tester
insulation tester
Add to favorites
Compare this product


Characteristics

Test type
insulation, insulation resistance
Tested product
battery
Configuration
compact, benchtop
Other characteristics
digital

Description

Detect contamination that could cause defects. Improve battery cell productivity through high-speed testing. Detecting minuscule insulation defects caused by contamination (Break Down Detect function) The BDD function is a proprietary testing function that can detect minuscule internal short-circuits caused by contamination (with metallic matter) at the stage before battery cells are filled with electrolyte. By identifying and eliminating defective parts at an early stage in the production process, the BDD function helps prevent the risk of hazards such as fires and accidents caused by heating after battery shipment. In addition, minuscule internal short-circuits in cells accelerate battery degradation. The BDD function will contribute to the production of batteries with greater durability and electrical performance. Stable insulation resistance testing, even in noisy environments Hioki succeeded in significantly reducing the effects of external noise by drawing on insulation resistance tester measurement technology and design expertise cultivated over many years. As a result, the BT5525 can perform stable, variation-free insulation resistance testing at a level of quality that lets its detect internal short-circuits caused by contamination. Preventing testing do-overs due to erroneous judgments The BT5525 provides a contact check function to determine whether the instrument has made proper contact with the circuit under test by measuring the capacitance between the measurement terminals (stray capacitance and the capacitance of the circuit under test).
