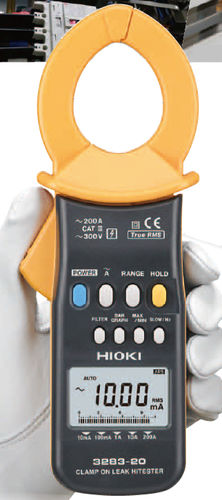

Digital clamp multimeter HiTESTER 3283

portable300 Vcat III

CLAMP ON LEAK HiTESTER 3283 1mA to 200A AC Leakage Current Clamp Meter with 10 µA Resolution to Analyze Distorted Waveforms Overview Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki 3283 series are leakage current handheld clamp meters with a 10mA to 200A range and 10 μA resolution. Model 3283 has output capabilities for advanced monitoring on recording equipment, and Model 3283-20 complies with EN 61010-2-032:2012 Type A standards to measure uninsulated hazardous live conductors such as busbars. CAT III 300 V: 3283-20 Key Features • - Measure leak current using highly sensitive 10μA resolution (at 10.00 mA range) • - Indicate 50/60 Hz leak current components with the filtering function • - Monitor leak current conditions in combination with a Memory HiCorder (monitor output, Model 3283 only) • - 3283-20: EN 61010-2-032:2012 Type A to measure uninsulated - hazardous live conductors such as busbars Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) - 3283 - 3283-20 AC Current range - 10.00 m/ 100.0 m/ 1.000/ 10.00/ 200.0 A, 5 ranges, (40 Hz to 2 kHz, True RMS), Basic accuracy: ±1.0 % rdg. ±5 dgt., Guaranteed accuracy: from 1.00 mA AC Voltage range - N/A Frequency range - 30.0 Hz to 1000 Hz, 2 ranges, Basic accuracy: ±0.3 % rdg. ±1 dgt. Crest factor - 2.5 or less (1.5 at 200 A range) Filter function - Cut off frequency at filter ON: 180 Hz (-3dB)
