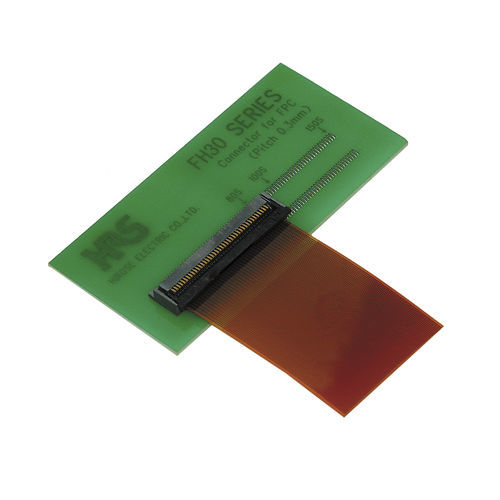

Data connector FH30 SeriesFPCFPC/FFCFFC
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- FPC, FPC/FFC, FFC, ZIF, SMT
- Shape
- parallel
- Material
- PC
- Product applications
- board, actuator
- Domain
- automatic, printed circuit
- Other characteristics
- flexible
- Primary current
0.15 A, 0.3 A
- Voltage
30 V, 50 V
- Pitch
0.6 mm, 0.8 mm
(0.024 in, 0.031 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
0.3 or 0.4 mm pitch, 3 mm above the board, Flip-Lock actuator, Flexible Printed Circuit ZIF connectors
1. Strong actuator retention
2. Rotating Flip–Lock actuator
3. FPC position hold
4. Accepts standard FPC thickness
5. Easy solder-ability on the PC board
6. Board placement with automatic equipment
7. Conductive traces on the PCB can run under the connector
8. Halogen-free*
* As defined by IEC61249-2-21
9. 500pcs per reel packing option available (For trial production)
