FPC connector FH79 Series datalow-profileAC/DC
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- FPC
- Shape
- low-profile
- Electrical characteristics
- AC/DC
- Material
- gold
- Product applications
- horizontal operation
- Domain
- for automotive applications
- Norms
- RoHS
- Other characteristics
- compact, halogen-free, double-row, heat-resistant
- Primary current
0.3 A
- Voltage
50 V
- Pitch
0.3 mm, 0.6 mm
(0.012 in, 0.024 in)- Data rate
4.5 Gb/s, 5.4 Gb/s
- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description

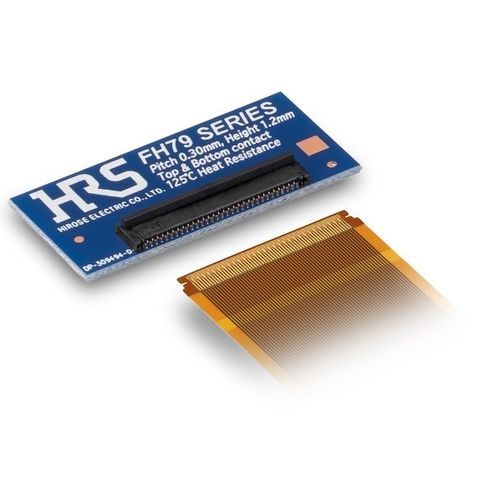

0.3mm Pitch, 1.2mm Height, Top & Bottom Contact, 125℃ Heat Resistance,
Back Flip FPC Connector for Automotive
• Compact and Space-Saving
- Narrow Pitch: 0.3mm (Mounting Pitch: 0.6mm)
- Low-Profile: 1.2mm
• 125℃ heat resistance meets stringent testing requirements for various automotive applications.
• Top & bottom contact design enhances board design flexibility and simplifies assembly.
Catalogs
FH79 Series
1 Pages
