Data connector FH36 Series
FPCFPC/FFCFFC

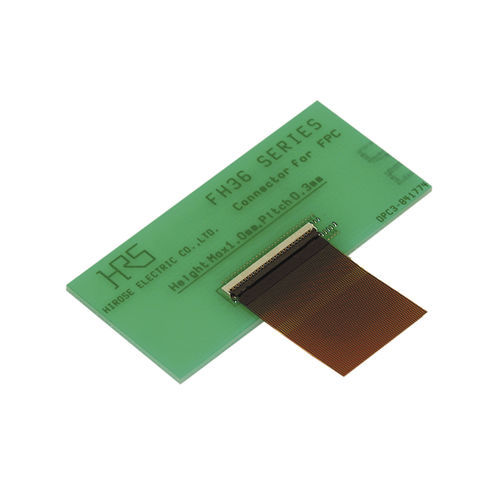

Data connector - FH36 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / FFC
Data connector - FH36 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / FFC
Data connector - FH36 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / FFC - image - 2
Add to favorites
Compare this product
Go to the Hirose Electric Europe B.V. website for more information

Characteristics

Type
data
Format
FPC, FPC/FFC, FFC, ZIF, SMT
Shape
parallel, low-profile
Material
PC
Product applications
board
Domain
automatic, printed circuit
Other characteristics
halogen-free, flexible
Primary current

0.2 A

Voltage

30 V

Pitch

0.6 mm
(0.024 in)

Operating temperature

Min.: -55 °C
(-67 °F)

Max.: 85 °C
(185 °F)

Description

0.3 mm Pitch, 1.0 mm above the board Flexible Printed Circuit ZIF Connectors 1. Low-profile and light weight 2. Easy solderability on the PC board 3. Conducive traces on the PCB can run under the connector 4. Easy FPC insertion and reliable electrical connection 5. FPC position hold 6. Accepts standard FPC thickness 7. Board placement with automatic equipment 8. Halogen-free * (FH36W Series) *As defined by IEC61249-2-21 9. 500pcs per reel packing option available (For trial production)
