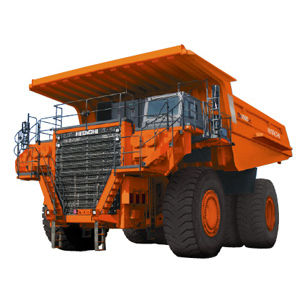

Rigid dump truck EH5000AC-3

electricdieseldiesel engine

Advanced AC Drive System
The EH5000AC-3 integrates an Advanced Hitachi Construction Machinery AC Drive System designed and manufactured by the same producer as the truck, enabling an integrated propulsion architecture. The AC Drive System delivers increased top speeds and stronger electric braking. AC wheel motors are engineered for reduced maintenance, higher availability and faster travel speeds, supporting improved productivity and lower operating cost per tonne.

Overview
The operator environment features a large, centrally mounted colour display for straightforward control and monitoring. The cab uses double-wall construction to improve structural rigidity and reduce vibration. The truck suspension and trailing arm layout maintain manoeuvrability at higher travel speeds while simplifying service access. Coolant, grease, hydraulic and engine oil points are reachable at ground level for faster maintenance cycles.

Key model data

• Nominal payload (with standard equipment): 296 tonnes (326 tons)
• Gross machine operating weight: 500 000 kg (1,102,311 lb.)
• Engine Rated Power: Standard and optional engines rated at 2 125 kW (2 889 PS, 2 850 HP)

Pass match

• The EH5000AC-3 is matched with hydraulic excavators such as the EX8000 and supports efficient loading with models including the EX5600.
• This configuration supports efficient loading performance across a wide range of operating conditions.
• Efficient pass matching reduces unnecessary loading cycles and contributes to stable loading performance.

Technical specifications

• Engine Model (standard): Cummins QSKTA60-CE (T2)
• Engine Model (optional): MTU 16V4000 C31 (Not Certified)
• Tire size / Rim Width: 53/80R63 (standard) 914 mm (36 in.); 53/80R63 (optional) 965 mm (38 in.)
• Overall length: 15 490 mm (50 ft. 10 in.)
• Overall width: 9 600 mm (31 ft. 6 in.)
• Nominal payload (kg): with Standard Equipment: 296 tonnes (326 tons)
• Gross machine operating weight (kg): 500 000 kg (1,102,311 lb.)
• Engine Rated Power (kW): Standard: Cummins QSKTTA60-CE: 2 125 kW (2 889 PS, 2 850 HP); Optional: MTU 16V4000 C31: 2 125 kW (2 889 PS, 2 850 HP)
