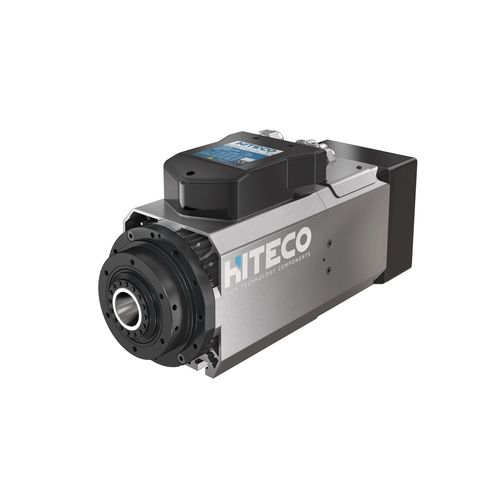

Electrospindle with automatic tool changer QE-1F 4 12/24 I30 seriescoolingmachininghigh-power
Add to favorites
Compare this product
Characteristics
- Function
- cooling, machining, high-power
- Other characteristics
- with automatic tool changer, for wood, for aluminum, for working plastic, ISO 30
- Rotational speed
Max.: 24,000 rpm
(150,796.45 rad.min-1)Min.: 12,000 rpm
(75,398.22 rad.min-1)
Description
• iM SMART SENSOR: speed, vibrations and temperature directly on your PC
• Available in the dual voltage version 220V/380V
COMPACT DESIGN
High power levels in only 394 mm
MULTIPLE TOOL TAPERS
Available also with HSK 63 F tool taper and ISO30
CONFIGURABILITY
With the same layout there are a wide range of power options available from 4 to 5.5 kw and optionals (encoder, dual voltage)
SIMPLE MAINTENANCE
Simple maintenance with spindle kit management
Bearings - Ceramic - grease lubrication for life
Cooling - Electrofan
Sensors
S1 (Tool grip)
S2 (Collet open)
S3 (Spindle rotation)
Release cylinder - Pneumatic single-action
Other specifications
Taper blow
Pressurised labyrinth
Dual voltage 22V/380V power supply
HSK 63F
Plug&Play PP connection
CC Circular Connection
Encoder 1Vpp or TTL
Sensor S5
Speed monitoring sensor (IM Smart Sensor)
Bearings temperature monitoring sensor (IM Smart Sensor)
Vibration sensor (IM Smart Sensor)
Compressed air cooling
