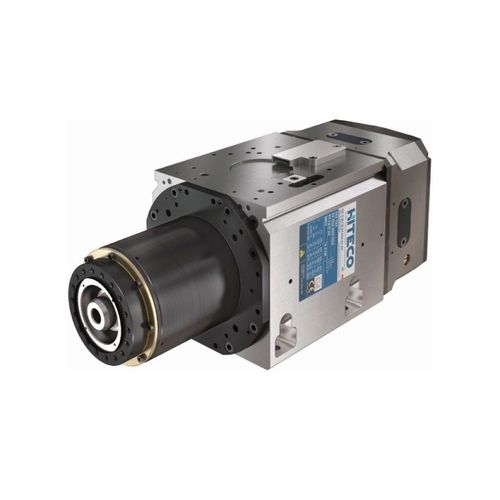

Electrospindle with automatic tool changer HT series

machiningcoolinghigh-power

• Air and lubrication passage through the spindle (Oil Mist, MQL) to improve the machining efficiency of wood, light alloys and composite materials • Square extruded section optimised for maximum versatility in the different applications • Possibility of installing the encoder in the same casing size • iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link) HIGH POWER High power (25 KW) starting from 9000 RPM with asynchronous technology STIFFNESS 5 bearings in the long nose version for greater precision in demanding machining operations VERSATILE LAYOUT Maximum versatility in the different applications such as bi-rotative heads, 3-axis CNC and robotic applications WIDE RANGE OF OPTIONALS Encoder and Mql - Oil Mist (“aerosol oil”) for optimal precision and lubrication when machining aluminium parts Tool taper - HSK 63F Bearings - Ceramic - grease lubrication for life Cooling - Liquid Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) S5 (Piston back) Release cylinder - Pneumatic single-action Other specifications Taper blow Pressurised labyrinth CC circular connector Air Tool Long nose** Encoder 1Vpp or TTL CC machine side circular connection Bearings temperature monitoring sensor (iM Smart Sensor) Speed monitoring sensor (iM Smart Sensor) Vibration sensor (iM Smart Sensor) Oil Mist/MQL
