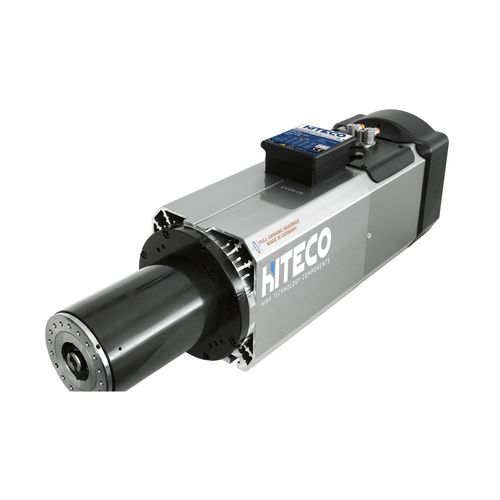

Electrospindle with automatic tool changer QF-1F 13/7 15 63F

machiningcoolingfor aluminum

• Power up to 18 kW and high torque levels for demanding machining operations Liquid cooling available for intensive uses • Standard Plug&Play PP type of electrical connection • iM SMART SENSOR: speed, vibrations and temperature directly on your PC DEMANDING MACHINING OPERATIONS Available with HSK 63E tool taper for double profile tools to have two profiles of different windows on the same tool holder Maximum power from 6000 RPM in the air and liquid cooled versions STIFFNESS Long nose layout to guarantee considerable stiffness CONFIGURABILITY With the same layout there is a wide range of power options available (up to 18 kW) to meet different types of machining operations MENT Tool taper - HSK 63F Bearings - Ceramic - grease lubrication for life Cooling - Electrofan Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) Release cylinder - Pneumatic double-action Other specifications Plug & play PP machine side connection Taper blow Pressurised labyrinth HSK 63E C Axis Plug & play PP machine side connection Speed monitoring sensor Bearings temperature monitoring sensor Vibration sensor
