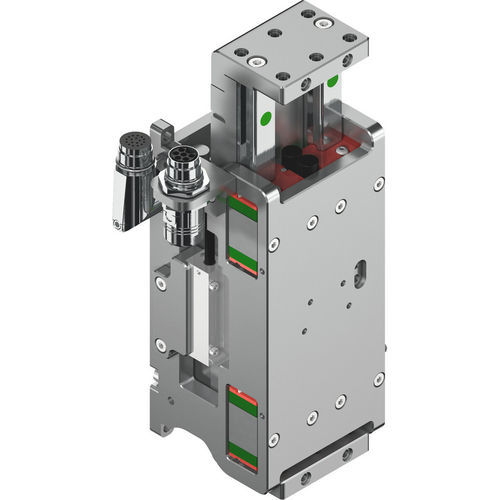

Profile linear axis CV080LA11

direct-drivelinear motor-drivenposition-sensing

DescriptionCompact CV linear axes designed for high-speed vertical applications. These direct-drive, compactly built axes deliver very short positioning times and stable process behaviour. The lightweight arm provides high dynamics, making the CV series particularly suitable for vertical motion tasks. Options include counterbalance, and stroke, cable carrier, position feedback and clamping can be customised. The CV axes can be combined into X‑Z systems or easily integrated into larger linear-axis systems. CAD data is available for download.

Main features

• Compact linear axis with direct drive
• High dynamics thanks to lightweight arm
• Designed for high-speed vertical applications
• Optional counterbalance available
• Customisable: stroke, cable carrier, position measurement, clamping
• Can be combined into X‑Z systems and integrated into linear-axis systems
• CAD data available

Technical overview (listed variant)Profile width [mm] | Peak force [N] | Max. stroke [mm] | vmax [m/s] | amax [m/s²] | Repeatability [mm]
80 | 289 | 300 | 5 | 80 | ± 0.005

Characteristics / Specifications

• Model: CV080LA11
• Profile width: 80 mm
• Peak force: 289 N
• Max. stroke: 300 mm
• Max. speed: 5 m/s
• Max. acceleration: 80 m/s²
• Repeatability: ± 0.005 mm
