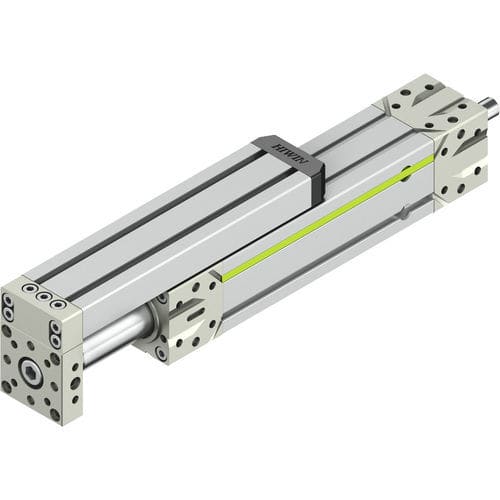

Electric actuator EA series

linearslide

Overview
Ideal for applications with variable loading directions. Electric actuators with a single slide guide reliably absorb additional radial forces acting on the piston tube. The guide is mounted on the end block to provide precise guidance and increased stability during operation. Mounting is possible as a retrofit. The arrangement is freely selectable and can be adapted to your installation situation.

Product table
Type | Size [mm] | Lead [mm] | Max. stroke length [mm] | Max. dynamic feed force [N] | Max. speed [m/s] | Max. acceleration [m/s²] | Repeatability [mm]
EA040S005-XNNN | 40 | 5 | 300 | 2800 | 0.4 | 20 | ± 0.02
EA040S010-XNNN | 40 | 10 | 300 | 2300 | 0.8 | 20 | ± 0.02
EA040S016-XNNN | 40 | 16 | 300 | 1700 | 1.3 | 20 | ± 0.02
EA050S005-XNNN | 50 | 5 | 300 | 3500 | 0.4 | 20 | ± 0.02
EA050S010-XNNN | 50 | 10 | 300 | 2800 | 0.8 | 20 | ± 0.02
EA050S020-XNNN | 50 | 20 | 300 | 1700 | 1.5 | 20 | ± 0.02
EA060S005-XNNN | 60 | 5 | 300 | 3900 | 0.3 | 20 | ± 0.02
EA060S010-XNNN | 60 | 10 | 300 | 3100 | 0.6 | 20 | ± 0.02
EA060S025-XNNN | 60 | 25 | 300 | 2400 | 1.5 | 20 | ± 0.02
EA080S005-XNNN | 80 | 5 | 300 | 5600 | 0.2 | 20 | ± 0.02
EA080S010-XNNN | 80 | 10 | 300 | 11900 | 0.4 | 15 | ± 0.02
EA080S020-XNNN | 80 | 20 | 300 | 9600 | 0.8 | 15 | ± 0.02
EA080S040-XNNN | 80 | 40 | 300 | 7300 | 1.6 | 15 | ± 0.02

Key characteristics

• Guidance type: single slide guide designed to absorb radial forces acting on the piston tube
• Mounting: slide guide installed on the end block; arrangement freely selectable; retrofittable
• Stroke: freely selectable in millimetre steps
• Customisation: wide range of accessories and configurator support; CAD data and technical drawings available for download
• Repeatability: ± 0.02 mm (as listed per product)

Technical characteristics (summary)

• Available sizes (bore/slider widths): 40, 50, 60, 80 mm
• Lead options: from 5 mm up to 40 mm depending on model
• Max. stroke length per listed variant: 300 mm
• Max. dynamic feed force range: approx. 1700 N to 11900 N depending on model/lead
• Max. speeds and accelerations vary by model; examples shown in table
• Repeatability: ± 0.02 mm
