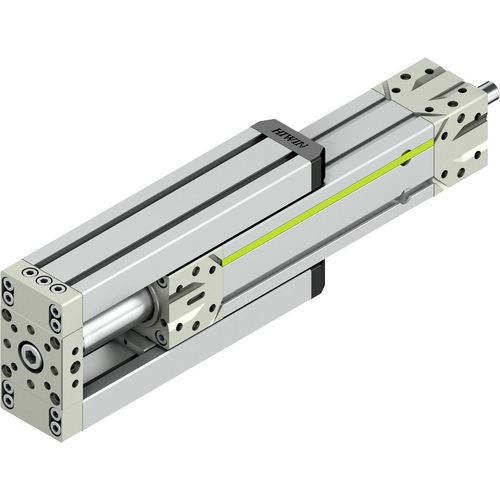

Electric actuator EA series

lineardoublefor integration

Product overview
For applications with lateral loads. EA-S electric actuators with double slide guides absorb additional radial forces on the piston tube and provide improved stability and positioning precision. Mounting is on the end block; the guide arrangement is freely selectable and can be retrofitted. Stroke selectable in millimetre steps. Customisation via product configurator; CAD data and technical drawings available for download.

Available models and technical table
Type | Size [mm] | Lead [mm] | Max. stroke length [mm] | Max. dynamic feed force [N] | Max. speed [m/s] | Max. acceleration [m/s²] | Repeatability [mm]
EA040S005-XXNN | 40 | 5 | 300 | 2800 | 0.4 | 20 | ±0.02
EA040S010-XXNN | 40 | 10 | 300 | 2300 | 0.8 | 20 | ±0.02
EA040S016-XXNN | 40 | 16 | 300 | 1700 | 1.3 | 20 | ±0.02
EA050S005-XXNN | 50 | 5 | 300 | 3500 | 0.4 | 20 | ±0.02
EA050S010-XXNN | 50 | 10 | 300 | 2800 | 0.8 | 20 | ±0.02
EA050S020-XXNN | 50 | 20 | 300 | 1700 | 1.5 | 20 | ±0.02
EA060S005-XXNN | 60 | 5 | 300 | 3900 | 0.3 | 20 | ±0.02
EA060S010-XXNN | 60 | 10 | 300 | 3100 | 0.6 | 20 | ±0.02
EA060S025-XXNN | 60 | 25 | 300 | 2400 | 1.5 | 20 | ±0.02
EA080S005-XXNN | 80 | 5 | 300 | 5600 | 0.2 | 20 | ±0.02
EA080S010-XXNN | 80 | 10 | 300 | 11900 | 0.4 | 15 | ±0.02
EA080S020-XXNN | 80 | 20 | 300 | 9600 | 0.8 | 15 | ±0.02
EA080S040-XXNN | 80 | 40 | 300 | 7300 | 1.6 | 15 | ±0.02

Key features

• Designed to absorb lateral/radial loads via two slide guides (double guide).
• Increased stability and positioning precision compared to single-guide variants.
• End-block mounting; guide arrangement freely selectable and retrofittable.
• Stroke freely selectable in millimetre steps.
• Wide range of accessories to adapt to application needs.
• CAD data and technical drawings provided for integration into your design.

Technical specifications

• Series: EA-S (electric actuator with slide guide).
• Available bearing/piston tube diameters (Size): 40 mm, 50 mm, 60 mm, 80 mm.
• Available leads: 5 mm, 10 mm, 16 mm, 20 mm, 25 mm, 40 mm (model-dependent).
• Maximum stroke length (per listed models): 300 mm.
• Max. dynamic feed force range: up to 11,900 N (highest listed).
• Max. speed range: up to 1.6 m/s (model-dependent).
• Max. acceleration: up to 20 m/s² (model-dependent).
• Repeatability: typically ±0.02 mm.
• Installation: end-block mounting; arrangement selectable and retrofittable.
• Customization: stroke in mm steps, extensive accessories, product configurator and CAD/drawings available.
