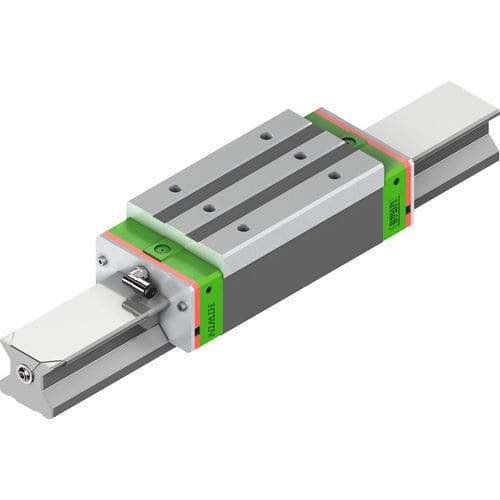

Roller guide UR series

Overview
Durable roller guide with extremely high load capacity. Thanks to the optimized geometry of the rolling elements, the UR heavy load guideway guarantees maximum load ratings and rigidity as well as consistent running performance. Patented 360° lubricant distribution ensures reliable lubrication in all installation positions while reducing consumption. Dirt-resistant sealing systems protect against harsh industrial conditions. CAD data and technical drawings are available for download.

Variants

• URH — High-profile block carriage: raised design for particularly robust and rigid guidance, increased height for optimum force absorption and high stability. Available in heavy load and super heavy load types.
• URL — Flat block trolley: low-profile design for compact machine layouts; stable, rigid guidance with minimal installation space. Available in heavy load and super heavy load types.
• URW — Flange block trolley: broad support surface for very stable, torsion-resistant mounting; suitable where maximum stability and flexible installation options are required. Available in heavy load and super heavy load types.

Features

• Roller guide design optimized for very high dynamic and static load capacities.
• Patented 360° lubricant distribution for reliable lubrication in all installation positions and reduced lubricant consumption.
• Dirt-resistant sealing systems for protection in harsh industrial environments.
• Multiple block types (high profile, flat, flange) to suit different installation constraints.
• Available in configurations for heavy load and super heavy load applications.
• CAD models and technical drawings available for configuration and download.

Caractéristiques / spécifications techniques

• Table headers: H [mm]; W [mm]; L [mm]; Cdyn [N]; C0 [N]; H1 [mm]; N [mm]; B [mm]; B1 [mm]; C [mm]; L1 [mm]; K1 [mm]; K2 [mm]; G [mm]; M; l [mm]; T [mm]; H2 [mm]; H3 [mm]; Mass [kg]; M0X [Nm]; M0Y [Nm]; M0Z [Nm]
• URH35CA: H=55; W=70; L=124; Cdyn=61.200 N; C0=127.500 N; H1=7 mm; N=18 mm; B=50 mm; B1=10 mm; C=50 mm; L1=79 mm; K1=24,5 mm; K2=14 mm; G=12,2 mm; M=M8; l=12 mm; T=12 mm; H2=14,9 mm; H3=14,9 mm; Mass=1,6 kg; M0X=2.720 Nm; M0Y=1.820 Nm; M0Z=1.820 Nm


• URH35HA: H=55; W=70; L=151,5; Cdyn=75.400 N; C0=172.100 N; H1=7 mm; N=18 mm; B=50 mm; B1=10 mm; C=72 mm; L1=106,5 mm; K1=37,25 mm; K2=14 mm; G=12,2 mm; M=M8; l=12 mm; T=12 mm; H2=14,9 mm; H3=14,9 mm; Mass=2,09 kg; M0X=3.670 Nm; M0Y=3.210 Nm; M0Z=3.210 Nm


• URH45CA: H=70; W=86; L=153,4; Cdyn=110.400 N; C0=239.600 N; H1=8 mm; N=205 mm; B=60 mm; B1=13 mm; C=60 mm; L1=107,2 mm; K1=34,6 mm; K2=12,1 mm; G=12,2 mm; M=M10; l=19 mm; T=17 mm; H2=20 mm; H3=20 mm; Mass=3,21 kg; M0X=6.380 Nm; M0Y=4.580 Nm; M0Z=4.580 Nm


• URH45HA: H=70; W=86; L=187; Cdyn=134.800 N; C0=309.500 N; H1=8 mm; N=205 mm; B=60 mm; B1=13 mm; C=80 mm; L1=140,8 mm; K1=41,4 mm; K2=12,1 mm; G=12,2 mm; M=M10; l=19 mm; T=17 mm; H2=20 mm; H3=20 mm; Mass=4,15 kg; M0X=8.240 Nm; M0Y=7.430 Nm; M0Z=7.430 Nm


• URH55CA: H=80; W=100; L=153,4; Cdyn=144.000 N; C0=336.000 N; H1=10 mm; N=235 mm; B=75 mm; B1=12,5 mm; C=75 mm; L1=125,5 mm; K1=35,75 mm; K2=12,5 mm; G=12,2 mm; M=M12; l=18 mm; T=18,5 mm; H2=19,5 mm; H3=19,5 mm; Mass=4,61 kg; M0X=10.370 Nm; M0Y=7.390 Nm; M0Z=7.390 Nm


• URH55HA: H=80; W=100; L=224,5; Cdyn=185.500 N; C0=467.600 N; H1=10 mm; N=235 mm; B=75 mm; B1=12,5 mm; C=95 mm; L1=175,3 mm; K1=50,65 mm; K2=12,5 mm; G=12,2 mm; M=M12; l=18 mm; T=18,5 mm; H2=19,5 mm; H3=19,5 mm; Mass=6,37 kg; M0X=14.430 Nm; M0Y=14.340 Nm; M0Z=14.340 Nm


• URL35CA: H=48; W=70; L=124; Cdyn=61.200 N; C0=127.500 N; H1=7 mm; N=18 mm; B=50 mm; B1=10 mm; C=50 mm; L1=79 mm; K1=24,5 mm; K2=14 mm; G=12,2 mm; M=M8; l=12 mm; T=12 mm; H2=7,9 mm; H3=7,9 mm; Mass=1,29 kg; M0X=2.720 Nm; M0Y=1.820 Nm; M0Z=1.820 Nm


• URL35HA: H=48; W=70; L=151,5; Cdyn=75.400 N; C0=172.100 N; H1=7 mm; N=18 mm; B=50 mm; B1=10 mm; C=72 mm; L1=106,5 mm; K1=37,25 mm; K2=14 mm; G=12,2 mm; M=M8; l=12 mm; T=12 mm; H2=7,9 mm; H3=7,9 mm; Mass=1,67 kg; M0X=3.670 Nm; M0Y=3.210 Nm; M0Z=3.210 Nm


• URL45CA: H=60; W=86; L=153,4; Cdyn=110.400 N; C0=239.600 N; H1=8 mm; N=20,5 mm; B=60 mm; B1=13 mm; C=60 mm; L1=107,2 mm; K1=34,6 mm; K2=12,1 mm; G=12,2 mm; M=M10; l=17 mm; T=17 mm; H2=10 mm; H3=10 mm; Mass=2,52 kg; M0X=6.380 Nm; M0Y=4.580 Nm; M0Z=4.580 Nm


• URL45HA: H=60; W=86; L=187; Cdyn=134.800 N; C0=309.500 N; H1=8 mm; N=20,5 mm; B=60 mm; B1=13 mm; C=80 mm; L1=140,8 mm; K1=41,4 mm; K2=12,1 mm; G=12,2 mm; M=M10; l=17 mm; T=17 mm; H2=10 mm; H3=10 mm; Mass=3,24 kg; M0X=8.240 Nm; M0Y=7.430 Nm; M0Z=7.430 Nm


• URL55CA: H=70; W=100; L=153,4; Cdyn=144.000 N; C0=336.000 N; H1=10 mm; N=20,5 mm; B=60 mm; B1=13 mm; C=60 mm; L1=107,2 mm; K1=34,6 mm; K2=12,1 mm; G=12,2 mm; M=M10; l=17 mm; T=17 mm; H2=10 mm; H3=10 mm; Mass=2,52 kg; M0X=6.380 Nm; M0Y=4.580 Nm; M0Z=4.580 Nm


• URL55HA: H=70; W=100; L=224,5; Cdyn=185.500 N; C0=467.600 N; H1=10 mm; N=23,5 mm; B=75 mm; B1=12,5 mm; C=75 mm; L1=125,5 mm; K1=35,75 mm; K2=12,5 mm; G=12,2 mm; M=M12; l=17 mm; T=17,5 mm; H2=10 mm; H3=10 mm; Mass=3,67 kg; M0X=10.370 Nm; M0Y=7.390 Nm; M0Z=7.390 Nm


• URW35CC: H=48; W=100; L=124; Cdyn=61.200 N; C0=127.500 N; H1=7 mm; N=33 mm; B=82 mm; B1=9 mm; C=62 mm; L1=79 mm; K1=18,5 mm; K2=14 mm; G=12,2 mm; M=M10; l= (not specified); T=12 mm; H2=7,9 mm; H3=7,9 mm; Mass=1,8 kg; M0X=2.720 Nm; M0Y=1.820 Nm; M0Z=1.820 Nm


• URW35HC: H=48; W=100; L=151,5; Cdyn=75.400 N; C0=172.100 N; H1=7 mm; N=33 mm; B=82 mm; B1=9 mm; C=62 mm; L1=106,5 mm; K1=32,25 mm; K2=14 mm; G=12,2 mm; M=M10; l= (not specified); T=12 mm; H2=7,9 mm; H3=7,9 mm; Mass=2,43 kg; M0X=3.670 Nm; M0Y=3.210 Nm; M0Z=3.210 Nm


• URW45CC: H=60; W=120; L=153,4; Cdyn=110.400 N; C0=239.600 N; H1=8 mm; N=33,5 mm?; B=116 mm; B1=10 mm; C=80 mm; L1=107,2 mm; K1=24,6 mm; K2=12,1 mm; G=12,2 mm; M=M12; l= (not specified); T=14 mm; H2=10 mm; H3=10 mm; Mass=3,47 kg; M0X=6.380 Nm; M0Y=4.580 Nm; M0Z=4.580 Nm


• URW45HC: H=60; W=120; L=187; Cdyn=134.800 N; C0=309.500 N; H1=8 mm; N=375 mm; B=100 mm; B1=10 mm; C=80 mm; L1=140,8 mm; K1=41,4 mm; K2=12,1 mm; G=12,2 mm; M=M12; l= (not specified); T=14 mm; H2=10 mm; H3=10 mm; Mass=4,58 kg; M0X=8.240 Nm; M0Y=7.430 Nm; M0Z=7.430 Nm


• URW55CC: H=70; W=140; L=174,7; Cdyn=144.000 N; C0=336.000 N; H1=10 mm; N=435 mm; B=116 mm; B1=12 mm; C=95 mm; L1=125,5 mm; K1=25,75 mm; K2=12,5 mm; G=12,2 mm; M=M14; l= (not specified); T=16 mm; H2=9,6 mm; H3=9,6 mm; Mass=5,16 kg; M0X=10.370 Nm; M0Y=7.390 Nm; M0Z=7.390 Nm


• URW55HC: H=70; W=140; L=224,5; Cdyn=185.500 N; C0=467.600 N; H1=10 mm; N=435 mm; B=116 mm; B1=12 mm; C=95 mm; L1=175,3 mm; K1=50,65 mm; K2=12,5 mm; G=12,2 mm; M=M14; l= (not specified); T=16 mm; H2=9,6 mm; H3=9,6 mm; Mass=7,31 kg; M0X=14.430 Nm; M0Y=14.340 Nm; M0Z=14.340 Nm
