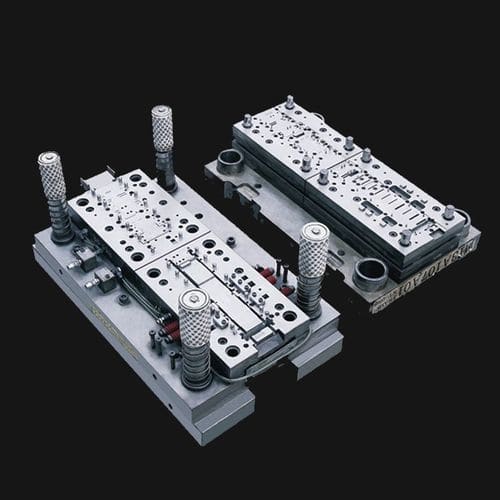

Cast iron die set

steelaluminum

Product overview

• Product: custom mold inserts
• Material: Tungsten steel
• Surface: Heat treatment
• Tolerance: ±0.002 mm
• Application: Stamping mold
• Primary market: Japan

Description
HLC manufactured over 100 precision mold inserts, including cavities and cores, for a Japanese customer, meeting tolerances down to ±0.002 mm. Parts ranged from a few millimetres to components up to 500 mm long. Production combined high-precision CNC machining, EDM (electrical discharge machining), wire EDM and surface grinding. Comprehensive inspection reports were supplied covering dimensions, tolerances, surface finish and material verification.

Detailed product items

• Item name: Stamping tooling component
• Dimension: per tooling specifications
• Craftsmanship: Wire cutting (EDM wire)
• Finish: Grinding and polishing
• Price: Real factory price
• Packing: Foam protection
• Services: OEM and ODM available

About Project (manufacturing & quality)
The project required strict precision and traceability. Processes included CAD design, engineering review, CNC machining, EDM, surface grinding, PG (process grinding), polishing and rigorous QC/IPQC inspections. Packaging and delivery were performed to customer requirements.

Manufacturing process (steps)

• [Tooling design] 3D modelling with CAD
• [Engineering meeting] Technical confirmation and approvals
• [CNC machining] Rough and finish machining to shape
• [EDM machining] Create fine geometries and features
• [PG] Remove surface defects and ensure geometry
• [Polishing] Improve surface and part performance
• [QC & IPQC] Dimensional and surface inspections throughout production
• [Package & Deliver] Protective packing and shipping per customer request

Technology & capabilities

• CNC machining
• Wire EDM
• EDM
• Surface grinding
• Polishing
• Progressive stamping dies
• Metal stamping
• In-mold welding (capability demonstrated)
• Assembly
• QC / IPQC

Technical specifications

• Material: Tungsten steel
• Surface treatment: Heat treatment; grinding; polishing
• Tolerance: ±0.002 mm
• Dimension range: from a few millimetres up to ~500 mm length (project examples)
• Manufacturing methods: CAD design, CNC machining, EDM, wire EDM, surface grinding, polishing
• Craftsmanship: Wire cutting (EDM wire), precision machining
• Finish: Ground and polished surfaces
• Packing: Foam protection
• Services: OEM / ODM available
• Application: Stamping mold / stamping die components
• Example delivered quantity: over 100 precision mold inserts (project case)
