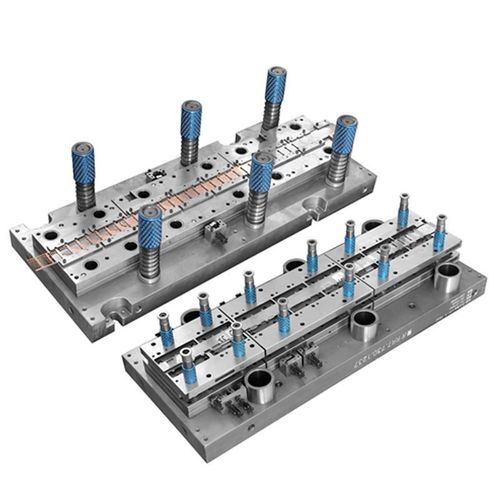

Product overviewElectrical stamping die for production of stamped parts used in electrical and electronic components. Typical material: tungsten steel; supported materials include spring steel, stainless steel and brass. Thickness range: 0.01 - 1.2 mm. Typical tolerance: ±0.01 mm; general tolerance range: ±0.03 to ±0.05 mm.
Key specifications- Material: Tungsten steel (typical); supported: Spring steel, Stainless steel, Brass
- Thickness: 0.01 - 1.2 mm
- Surface finish: Heat treatment, Plating, Degreasing, Electrophoresis
- Tolerance: ±0.01 mm (example); general range ±0.03 ~ ±0.05 mm
- Certificates: IATF16949:2016, ISO13485:2016; RoHS and REACH reports available
- Supply capacity: 600,000 - 800,000 pcs/month
Manufacturing & qualityHLC operates a manufacturing plant in Dongguan with a dedicated stamping die processing center. The workshop is equipped with CNC, EDM (wire cutting) and PG equipment and can control processing accuracy down to 0.001 inch to meet precision-insert requirements. 100% inspection is performed and required certifications are maintained. Engineering teams provide PFM reports and validate dimensions, tolerances and materials with customers before production.
Technology / Capabilities- CNC machining
- Wire cutting (EDM)
- PG equipment
- Assembly
- In-mold welding
- Metal stamping
- Progressive stamping dies
- QC / IPQC
Supply & servicesServices include free mold proofing, custom fabrication based on customer drawings and pre-production PFM reports to define dimensions, tolerances and materials. Typical customers: TDK, ABB, Sensata, Panasonic. Production capacity and processes support high-volume, repeatable manufacturing.
ApplicationsSuitable for electrical connectors, terminals, sensor components, consumer electronics and automotive electronic parts.
