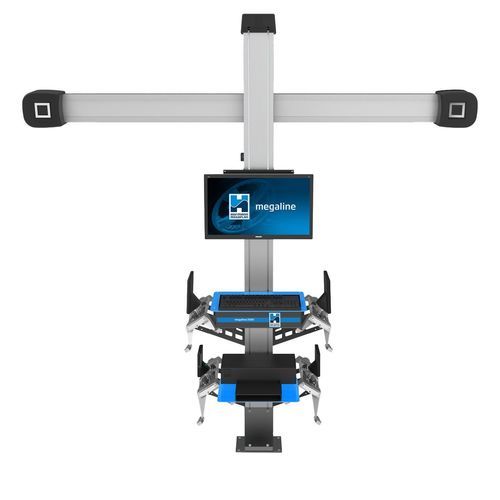

Optical alignment system Megaline 2500

measurementwirelessultra-compact

Short description
3D wheel alignment system designed for high accuracy and a compact footprint, ideal for small-sized workshops.

Description

• Space-saving structure for small-sized workshops
• Compact and lightweight targets with no electronics or batteries required
• High-precision measurement of toe, camber and maximum steering angle, with the possibility of real-time adjustment of detected values
• Vehicle database (updated approximately every four months) with more than 55,000 models; software and database updates occur automatically via internet connection
• Capability to measure long vehicles using two targets
• Audit feature: diagnosis of driving faults from out-of-tolerance measurements to facilitate service sales
• Brochure Download

Standard accessories

• Cabinet
• Computer with Windows 10 operating system
• 27" TFT monitor, colour printer, Wi‑Fi keyboard, loudspeakers
• 4 wheel clamps with 4 contact points (12–24") with universal bracket with targets
• Two mechanical turntables for cars
• Brake lock and steering wheel lock
• USB Wi‑Fi adapter
• Software and vehicle database

Technical specifications

• 3D wheel alignment system
• Space-saving structure suitable for small-sized workshops
• Targets: compact and lightweight; no electronics or batteries required
• Measured parameters: toe, camber, maximum steering angle
• Real-time adjustment of detected values
• Vehicle model database >55,000 entries; database updated approximately every four months
• Software and database updates via internet connection
• Capability to measure long vehicles using two targets
• Audit/diagnosis feature to identify driving faults from out-of-tolerance measurements
• Standard supplied hardware: cabinet; PC with Windows 10; 27" TFT monitor; printer; Wi‑Fi keyboard; speakers; 4 wheel clamps (12–24"); universal target bracket; 2 mechanical turntables; brake lock; steering wheel lock; USB Wi‑Fi adapter
