Optical alignment system megaline Logik 8 Hybrid

wireless

Overview

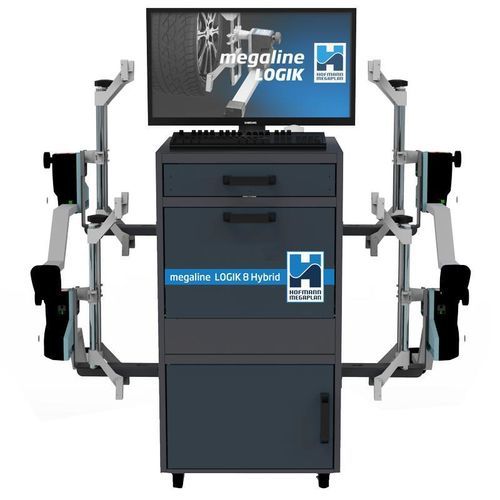

megaline Logik 8 Hybrid is a wheel alignment system with 8 CCD sensors supplied as a complete megaline cabinet including an industrial PC (Windows), colour printer, 27" TFT monitor, keyboard and mouse. Measuring heads connect wirelessly via the BT2 radio system, for use on cars, SUVs, light trucks and trucks using the appropriate heads.

Standard accessories

• 2 truck and 2 car measuring heads with lithium batteries
• Four 4-point clamps for 12"–24" wheels with metallic grips and reference surface with rubber cup; additional metallic grips L48mm; grips for 4-WD, SUV, light trucks and rims with hubcup L80mm–L120 (truck grips)
• Brake pedal lock and steering lock
• Safety elastic band
• Wheel alignment software and vehicle database for cars and trucks

Technical specifications

• Number of CCD sensors: 8 CCD sensors
• Complete megaline cabinet including: industrial PC (Windows), colour printer, 27" TFT monitor, keyboard and mouse
• Measuring head connection: BT2 radio system
• Measuring heads supplied: 2 truck + 2 car heads with lithium batteries
• Clamps: four 4-point clamps for 12"–24" wheels with metallic grips and reference surface with rubber cup; additional metallic grips L48mm; grips for 4-WD, SUV, light trucks and rims with hubcup L80mm–L120 (truck grips)
• Brake pedal lock and steering lock included
• Safety elastic band included
• Wheel alignment software and vehicle database for cars and trucks included
