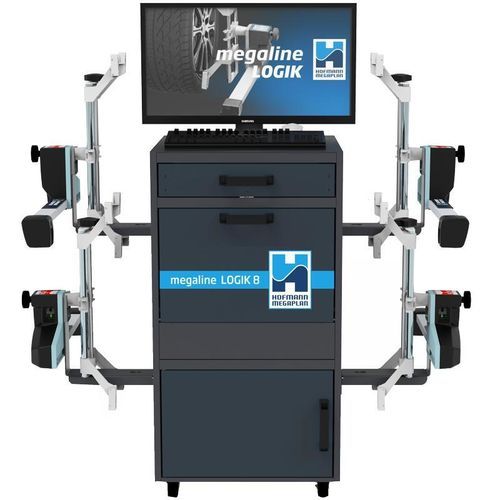

Measurement alignment system Logik 8

impact-resistantwirelesshigh-accuracy

Short description

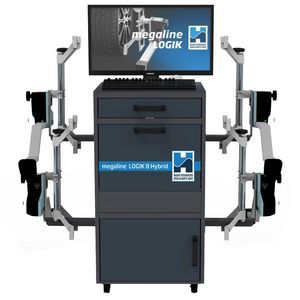

Wheel alignment system megaline Logik 8 with eight sensors for precise alignment of cars and small vans; truck/bus alignment available as an option.

Key features

• Long battery runtime: up to 24 working hours with 1-year warranty
• Lightweight gauge heads: 2.6 kg each for easier handling
• Wireless data transmission via BT2 instant connection
• Silicon accelerometer for impact resistance
• Direct charging of sensors without dismantling
• Dimensioned for modern SUV tyres — no extensions required
• Sunlight filter enables measurements outdoors and axle spacing over 12 m
• Simple, intuitive software with vehicle database

Standard accessories

• Computer with Windows OS
• 27" TFT monitor and colour printer
• USB keyboard and mouse
• 4 gauge heads for cars and 4 wheel clamps with elastic protective tape and 2 clamp fingers
• 2 front turntables for cars
• 1 steering wheel brake and 1 brake pedal stopper
• Alignment software and vehicle database

Technical specifications

• Number of sensors: 8
• Suitable for: cars and small vans (truck/bus alignment possible for surcharge)
• Gauge head weight: 2.6 kg
• Battery / service life: 24 working hours
• Warranty: 1 year
• Data transmission: wireless BT2 instant connection
• Sensor type: silicon accelerometer (impact-resistant)
• Charging: direct charging of sensors (no dismantling required)
• SUV tyre compatibility: dimensioned for new SUV tyres without extensions
• Sunlight filter: allows axle-spacing over 12 m, suitable for outdoor use
• Software: simple and intuitive; vehicle database included
• Standard equipment included: computer with Windows OS, 27" TFT monitor, colour printer, USB keyboard, mouse, 4 gauge heads, 4 wheel clamps with protective tape and 2 clamp fingers, 2 front turntables, steering wheel brake and brake pedal stopper
