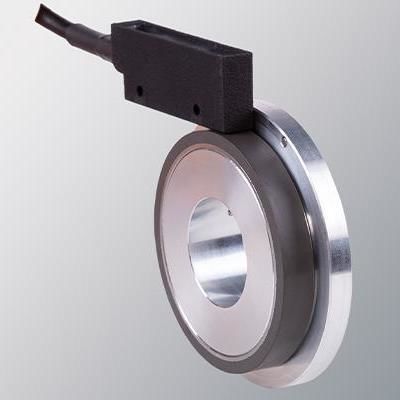

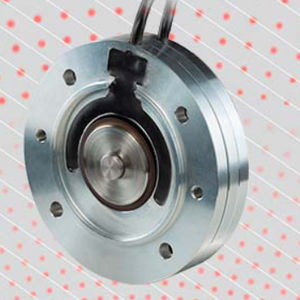

Incremental rotary encoder MSF-INC

magnetic14-bitdigital output

Overview

• Resolution up to 16384 pulses per turn
• Non-contacting measuring system
• Easy assembly
• Compact dimensions
• For applications under possible adverse ambient conditions (vibrations, humidity, dust, etc.)

Mechanical specifications
Materials: Housing: PC
Magnet support: Aluminium
Magnet: Samarium plastic-bonded
Housing fixing: 2 holes
Runout radial motor shaft: 0.05 mm
Maximum speed: 6000 rpm
Working distance: See "Sensor alignment tolerances" drawings
Fastening torque: 1.5 Nm (M4 Magnetic wheel CRI)
Protection against dust and splashes according to DIN EN 60529: IP67
Weight approx.: 0.15 Kg
Operating temperature range: -25°C to +85°C
Vibration according to DIN EN 60068-2-6: 100 m/s² (10Hz–2000Hz)
Shock according to DIN EN 60068-2-27: 1000 m/s² (6 ms)
Radial connection: 2 m cable or industrial connector (other lengths available on request); female connector not included


Output signals
Output circuit: Push-Pull Differential (TTL compatible (*))
Electronic output voltage: 5…30 VDC
‘High’ signal level: > VCC – 3 VDC
‘Low’ signal level: < 2.5 VDC
Consumption: Loaded < 120 mA @ 30 V
Frequency: ≤ 100 kHz
Max. load capability / channel: 40 mA
Short-circuit protection: Yes
Polarity inversion protection: Yes
Channel phasing: Channel A leads channel B by 90° electrical (view from the shaft, shaft rotating clockwise). (*) TTL/RS422 available if encoder supply is 5 VDC.


Technical specifications

• Series / model family: MSF-INC series
• Brand: Hohner Automation
• SKU example: MSF-INC-512-32-112
• Resolution: up to 16384 pulses per turn
• Measuring principle: Non-contacting magnetic measuring system
• Mounting: Housing fixing by 2 holes
• Runout radial motor shaft tolerance: 0.05 mm
• Maximum rotational speed: 6000 rpm
• Protection class: IP67 (DIN EN 60529)
• Operating temperature: -25°C to +85°C
• Vibration resistance: 100 m/s² (10Hz–2000Hz) per DIN EN 60068-2-6
• Shock resistance: 1000 m/s² (6 ms) per DIN EN 60068-2-27
• Output types: Push-Pull Differential (TTL compatible); TTL/RS422 available at 5 VDC supply
• Supply / electronic output voltage range: 5…30 VDC
• Maximum frequency: ≤ 100 kHz
• Max. load per channel: 40 mA
• Short-circuit and polarity inversion protection: Yes
• Connection: Radial connection with 2 m cable or industrial connector (female connector not included)
• Fastening torque (magnetic wheel CRI): 1.5 Nm (M4)
• Approximate weight: 0.15 Kg
• Materials: Housing (PC); magnet support (Aluminium); magnet (Samarium plastic-bonded)
