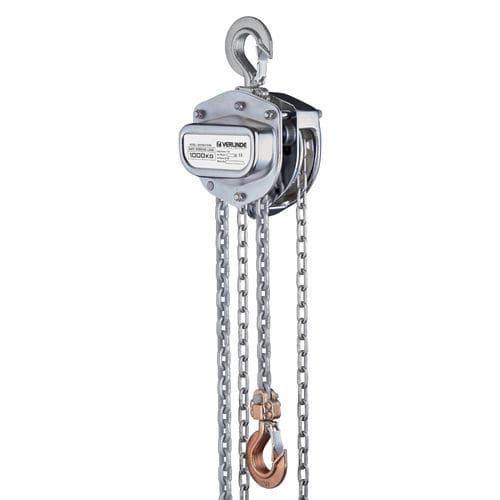

Manual chain hoist ZHV INOX

compactfor materials handlingstainless steel

The ZHV INOX manual chain hoist has a lifting capacity of 500kg to 1,000kg and is ideally suited to lifting and handling solutions within clean room environments. The ZHV INOX is available with the following optional extras: • - CHZ INOX trolley for normal headroom operations • - Load limiter Technical Information The ZHV INOX manual chain hoist is designed to provide users with a hygienic lifting solution for clean room environment. It is supplied with the following equipment as standard: • - Totally stainless steel body, hooks, lifting chain and hand chain • - Stainless steel casing protects chain sprocket, gear case and handwheel • - Electrolytic polishing surface treatment • - ISO stainless steel upper and lower hooks with safety latch • - 3 meters standard height of lift (hand chain is 0.5 meters less than load chain) • - Compact design with reduced weight to optimise safety during operations • - Chain sprocket and gears have been machined to provide an easy, efficient operation • - Supplied with EC Declaration of Conformity
