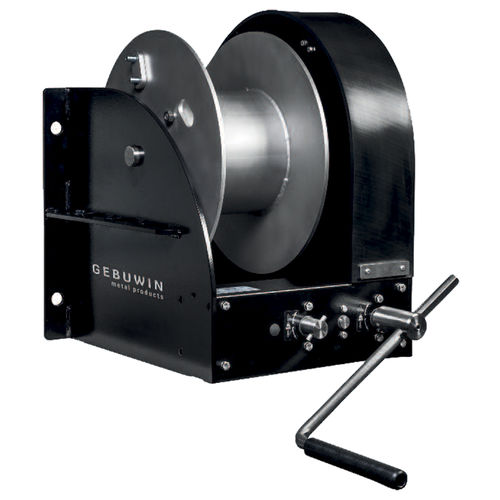

Maritime industry winch WW series

manualwire ropelifting

A design of the present robust worm gear winches of 3 capacities which are constructed with a fully covered gearing (IP 54). The cable drum, the crank and all outgoing shafts are made of high quality 316 stainless steel. All fasteners are of A4 quality stainless steel. The surface treatment of the steel housing complies with the stringent paint specifications C5M according to DIN/ISO 12944. These winches can be utilised with: sea water and chemical installations. Options include: • - Grooved drum • - Multiple compartment cable drum • - Suitable for winch power tool AM5000 • - ATEX certifies II 3 GD T4, suitable for zone 2 and 22 Technical Information Gebuwin's WW Manual Worm Gear Winch's technical specification: • - Robust and safe hoisting winch with two speeds for models with lifting capacity of 3,000kg - 5,000kg • - In compliance with EN13157, DIN 15020 and EX tyes ATEX 114 (34/9/EG) • - Cable drum, crank and all extruding shafts are made of stainless steel SAE grade 316 • - Square worm-wheel transmission and maintenance free bearings • - Cable output upwards, downwards or at rear • - Adjustable crank with ergonomic grip • - All fasteners are made of stainless steel A4 • - Easy to grease worm-wormwheel transmission • - Load pressure brake with silent double ratchet system • - Transmission is entirely enclosed and protected against environmental influence with protection classification IP 54 • - Static safety factor 4 • - Winch frame is made of steel, surfaces are brushed and edges are rounded • - Paint thickness is 240 Micron in 3 layers (in compliance with DIN/ISO 12944, C5M)
