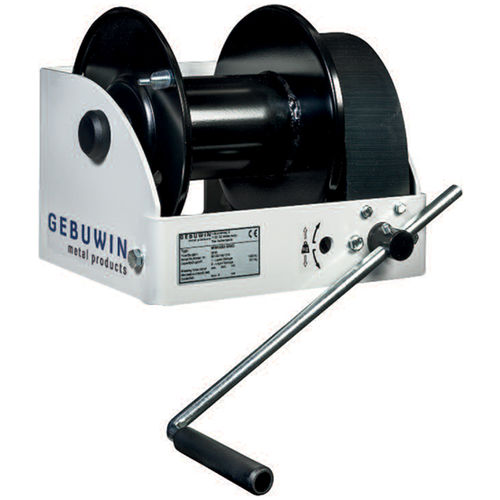

Manual winch WW series

wire ropehoistingworm gear

The WW hand driven worm gear winch is a robust and safe hoisting winch that is fully compliant with EN13157, DIN 15020 and EX types ATEX 114 (94/9/EG). This range is suitable for loads of up to 7,500kg and from the 2000 kg capacity winch and up, the winches are fitted with a second drive shaft, which makes it possible to work with two speeds. Most parts are made from steel and have been either painted or zinc plated. The winch with 7500 kg capacity has the worm-worm gear transmission completely protected by a sealed cover. • - Lifting capacity of up to 7,500kg • - Maximum cable storage per compartment up to 75m • - robust and safe winch unit with 2 speeds • - Adjustable crank with ergonomic grip Technical Information Gebuwin's WW Manual Worm Gear Winch's technical specification: • - Load pressure brake and quiet double ratchet • - Easy to grease worm transmission • - Maintenance free bearings • - Paint thickness is 60 – 80 Micron in 1 layer (in compliance with DIN/ISO 12944, C1M) • - Easy to grease worm-wormwheel transmission • - Adjustable crank, with ergonomic grip • - Cable output upwards, downwards or at rear • - Square worm-wormwheel transmission and maintenance free bearings • - Static safety factor 4 • - In compliance with EN13157, DIN 15020 and EX types ATEX 114 (94/9/EG) • - Robust and safe winch unit with two speeds
