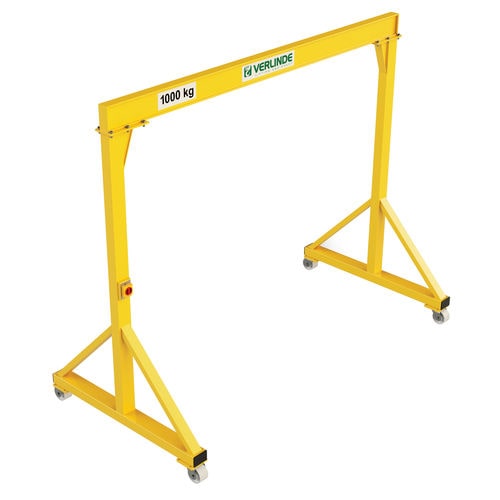

Mobile gantry crane VGI

for workshopssteel

The VGI steel portable / mobile gantry is an extremely manoeuvrable gantry that is movable under load, stable on all surfaces and mounted on rotating wheels for indoor use. The gantry system can manage loads from 500kg to 5,000kg. Ideally suited for workshop operations, the gantry can be assembled and disassembled as required making it an ideal solution for environments where space is an issue. It's delivered disassembled, together with an open profile beam, and is assembled quickly. • - Open profile beam • - Portable gantry is designed to moved under load (on a clean, flat floor) • - Welded construction in three main components (two legs and one beam) Technical Information The VGI Steel Portable / Mobile Gantry features the following technical characteristics: • - Safe working loads available: 500kg/1,000kg/1,600kg/2,000kg/3,200kg/5,000kg • - Spans available are 2.5/3/3.5/4/4.5/5 metres • - Heights to underside of 3/3.5/4/4.5/5 metres • - Supplied with locking castors on two wheels • - Gantry is finished in RAL1028 melon yellow polyurethane finish • - Suitable for hoists lifting speeds to 8m/min • - White polyamide wheels for up to 3,200kg SWL • - Polyurethane wheels for 5,000kg SWL • - Can be fully disassembled • - A range of painting options and electrical kits available
