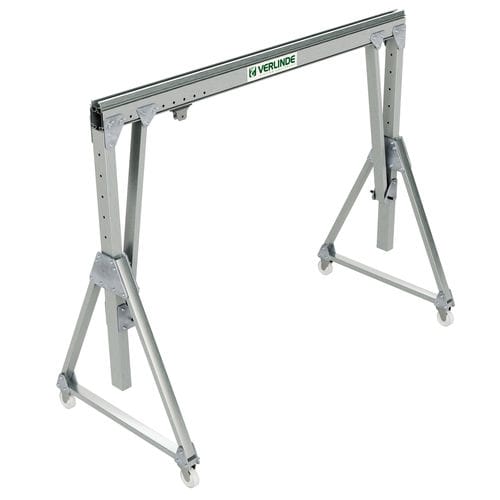

Mobile gantry crane VGPA
aluminumlightweightfor workshops

mobile gantry crane
mobile gantry crane
Add to favorites
Compare this product


Characteristics

Mobility
mobile
Other characteristics
for workshops, aluminum, height-adjustable, lightweight
Lift capacity

Max.: 2,000 kg (4,409 lb)

Min.: 250 kg (551 lb)

Working height

Max.: 4 m (13'01")

Min.: 1.55 m (5'01")

Description

The VGPA Aluminium Portable / Mobile Gantry is an independent manual gantry that can be re-positioned within the workshop to suit your operation and it is easy to disassembled and reassembled as and when required. The VGPA has been designed so that it is configurable with manual and electrically-powered hoists. The VGPA aluminium portable gantry features a Eurosystem ALU profile with a manual trolley for a hoist as standard, and has a lifting capacity of 250kg to 2,000kg. • - Lightweight and user friendly • - Corrosion resistant construction • - Adjustable in height by 200mm increments • - Infinitely variable adjustment to span (no set dimensions) • - Foldable for transportation Technical Information The VGPA Aluminium Portable / Mobile Gantry has the following technical features as standard: • - Safe working loads available: 250kg/500kg/1,000kg/1,600kg/2,000kg • - Working spans available are 0.9/1.4/1.9/2.4/2.9/3.4/3.9/4.4/4.9/5.4 metres • - Heights to underside: Model H0 1.55 - 2.15 metres • - Heights to underside: Model H1 2.15 - 3.2 metres • - Heights to underside: Model H2 3.0 - 4.0 metres • - Legs can be folded for dismantling/storage • - Eurosystem ALU main beam • - Supplied with Eurosystem push trolley • - Mounted on castor wheels in white polyamide (other options available) • - 2 locking castor's as standard • - Infinitely adjustable span • - Supplied with EC Declaration of Conformity • - Optional power feeding line and main isolator
