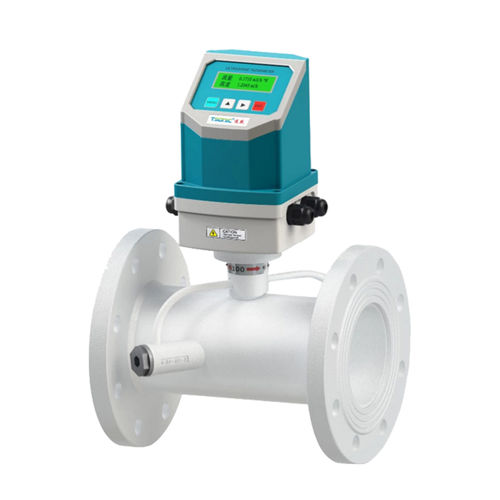

Ultrasonic flow meter UF2000F
volumefor waterfor oil

Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil
Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil
Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil - image - 2
Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil - image - 3
Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil - image - 4
Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil - image - 5
Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil - image - 6
Ultrasonic flow meter - UF2000F - Holykell - volume / for water / for oil - image - 7
Add to favorites
Compare this product
Go to the Holykell website for more information

Characteristics

Technology
ultrasonic
Type
volume
Fluid
for water, for oil, for chemicals, for fuel, for wastewater, for acids, for hot water
Pipe diameter
DN50 - 2", DN25 - 1", DN15 - 1/2", DN100 - 4", DN80 - 3", DN40 - 1"1/2, DN20 - 3/4", DN32 - 1"1/4, DN90 - 3"1/2, DN65 - 2"1/2, DN125 - 5", DN60 - 2"1/4
Installation
in-line, flange
Communication
4-20 mA, RS485, Modbus, digital output
Supply voltage
36VDC, 8VDC
Protection level
IP68
Applications
for the food industry, for the beverage industry
Other characteristics
high-accuracy
Process temperature

Min.: -30 °C
(-22 °F)

Max.: 160 °C
(320 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 40 bar
(580.15 psi)

Precision

0.5 %, 1 %

Repeatibility

0.2 %

Description

The Fix-mounting ultrasonic flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles. Application : ● Water (hot water, chilled water, city water, sea water, waste water, etc.); ● Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); ● Chemicals (alcohol, acids, etc.); ● Plant effluent; ● Beverage, liquid food; ● Ultra-pure liquids; Advantages Easy to operate. Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability. Powerful Recording Function, record the totalizer data of the last 64 days/64 months/5 years.

Catalogs

UF2000-F
UF2000-F
6 Pages
