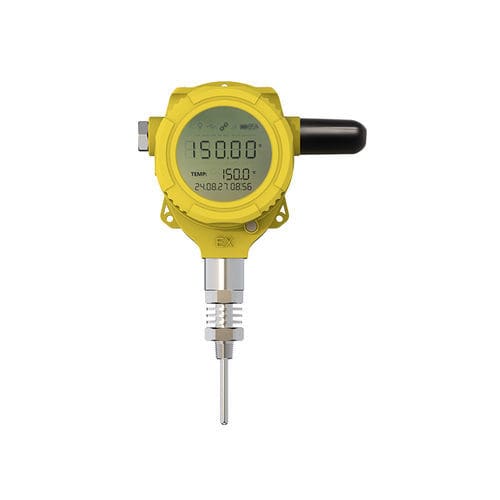

Pt100 temperature sensor H2602Pt1000threadedinsertion
Add to favorites
Compare this product
Characteristics
- Technology
- Pt100, Pt1000
- Mounting
- threaded, insertion, flange, plug-in
- Output
- digital, wireless, LoRaWAN, LoRa
- Protection level
- intrinsically safe, ATEX, waterproof, rugged
- Applications
- air, high-temperature, for liquids, for gas, water, for pipes, for medical applications, for the pharmaceutical industry, laboratory, engine, for OEM
- Temperature
Max.: 860 °C
(1,580 °F)Min.: -200 °C
(-328 °F)
Description
Wireless temperature sensors are designed for temperature monitoring. Based on the "integrated" design and HOLYKELL's iot cloud platform, it can effectively monitor the temperature in different temperature environments such as barns, laboratories and pharmaceutical warehouses.
Application :
1Remote temperature monitor
2Boiler and industrial oven temperature monitoring
3Temperature monitoring in greenhouses
4Other inflammable and explosive conditions
Advantages:
1High explosion-proof grade is applicable to any inflammable and explosive conditions.
2High-precision PT100/PT1000 temperature monitoring on HOLYKELL cloud platform.
3Meticulous iron-sand filling, more sensitive to temperature.
4Integrated/split design, flexble temperature measurement.
5Easy to read with the largest LCD display.
5CE, ROSH and ATEX are approved.
Range: Normal:-200~200℃; Split Type:-200~860℃; Others by customize
Configuration method:USB/ remote configuration
Working power:3.6V,19Ah
Battery Life:6 years (send data once every hour)
Network format:NB-IoT/GPRS/3G/4G/LoRa/LoRaWAN
Antenna:External waterproof antenna
Wake-up mode:Buttons, timing
Upload information:Temperature, signal, battery power
Working temperature:-30℃~+70℃(Medium does not crystallize)
Accuracy:0.5
Temperature influence:0.015%F.S/℃
Waterproof level:Normal IP66/Explosion-proof type IP68
Installation:Vertical and horizontal installation
Certificate:CE,ROSH,Exia IIC T6 Ga
