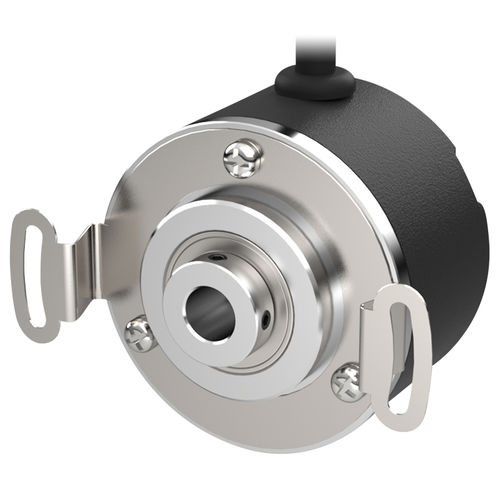

Hollow-shaft rotary encoder HS50Aincrementalopticaldigital output
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Output signal
- digital output, voltage output, Line Driver
- Supply voltage
- 5VDC, 24VDC, 12VDC, 15VDC, 8VDC, 9VDC, 4.5VDC
- Material
- stainless steel
- Protection level
- IP54
- Applications
- industrial, for motors, for robotics, for the food and beverage industry
- Other characteristics
- high-resolution, high-accuracy
- Incremental encoder résolution (pulses per revolution
Max.: 2,500 unit
Min.: 360 unit
- Housing diameter
60,000 µm
(2.36 in)Max.: 50 µm
Min.: 50 µm
- Shaft diameter
13 mm
(0.51 in)Max.: 8 mm
(0.31 in)Min.: 4 mm
(0.16 in)- Length
41 mm
(1.614 in)- Rotational speed
Max.: 50,000 rpm
(314,159 rad.min-1)Min.: 7,200 rpm
(45,239 rad.min-1)- Output frequency
300 kHz, 500 kHz
- Process temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
Application
- Industry Machine
-‧Automated Equipment
Feature
‧Reliable sturdy design
‧Small Size & Easy Mounting
‧ESD (IEC61000−4−2)
‧Reverse connection protection
‧Short-Circuit protection
Resolution
360, 400, 500, 512, 600, 625, 720, 800, 1000, 1024, 1200, 1250, 1440, 1600, 2000, 2048, 2400, 2500 P/R
Catalogs
HS50A Datasheet
4 Pages
