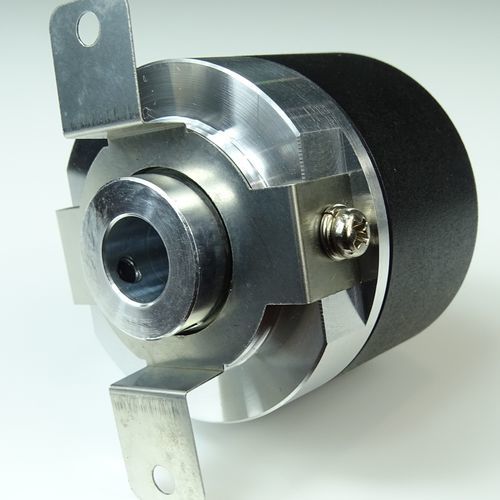

Hollow-shaft rotary encoder HS35Fincrementalopticaldigital output
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Output signal
- digital output, voltage output, Line Driver
- Supply voltage
- 5VDC, 24VDC, 12VDC, 15VDC, 8VDC, 9VDC, 4.5VDC
- Material
- stainless steel
- Protection level
- IP54
- Applications
- industrial, for motors, for OEM, for robotics, for the food and beverage industry
- Other characteristics
- compact, high-resolution, high-accuracy
- Incremental encoder résolution (pulses per revolution
Max.: 2,500 unit
Min.: 360 unit
- Housing diameter
35 mm
(1.38 in)Max.: 35 mm
(1.38 in)Min.: 35 mm
(1.38 in)- Shaft diameter
Max.: 8 mm
(0.31 in)Min.: 4 mm
(0.16 in)- Rotational speed
Max.: 50,000 rpm
(314,159 rad.min-1)Min.: 7,200 rpm
(45,239 rad.min-1)- Output frequency
300 kHz, 500 kHz
- Process temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
Application
‧Industry Machine
Features
‧Reliable sturdy design
‧Small Size & Esasy Mounting
Resolution
‧360 ~ 2500 P/R
Catalogs
HS35F Datasheet
4 Pages
