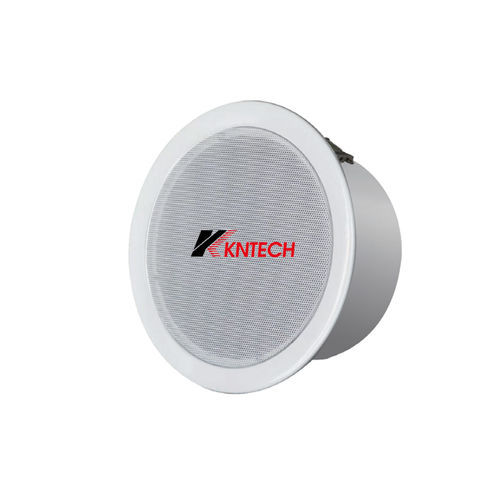

Ceiling loudspeaker KNL9-A-6W

fireproofpublic

Overview
Fireproof Ceiling Speaker designed for use in environments requiring fire rated components, delivering full-range audio performance for public address and background music applications.

Model and Basic Info
Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features

• Single 12 cm (5") full range cone-type transducer providing smooth frequency response from 80 Hz to 20 kHz measured on axis.
• Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with 1 watt input.
• Applications include conference rooms, cafes, churches, background music, entertainment venues, home theaters, etc.

Products Dimensions
See product size: 197*165*98mm.

Specification / System / Detailed Pictures
Specification, system diagrams and detailed product images are provided on the product page (technical drawings and specification images are available for reference).

Caractéristiques / spécifications techniques

• Model: KNL9-A-6W
• Driver: 12 cm (5") full range cone-type transducer
• Frequency response: 80 Hz – 20 kHz (on axis)
• SPL: 90 dB @ 1 m with 1 W input (on axis)
• Power ratings: 6 W (100V line), 3 W (70V line)
• Transformer taps (100V): 6 W, 3 W, 1.5 W, 0.8 W
• Transformer taps (70V): 3 W, 1.5 W, 0.8 W, 0.4 W
• Connectors: Push-in type, supports bridge wiring
• Dimensions: 197 x 165 x 98 mm
• Material: Metal with fire-rated metal rear cover
• Typical applications: conference rooms, cafes, churches, background music, entertainment venues, home theaters
