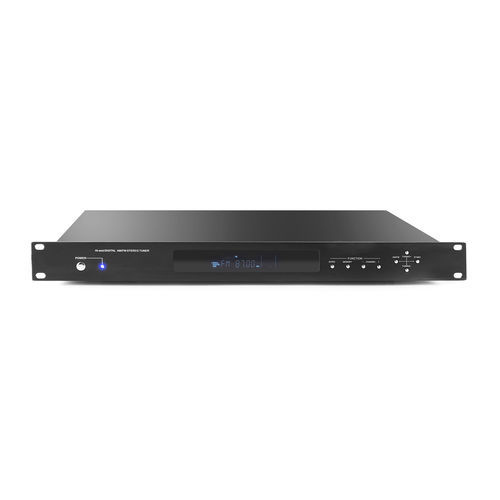

AM/FM tuner SH-F308R

Product
Model: SH-F308R
Form factor: 1U rack-mount (483 × 255 × 51 mm)
Material: Brushed black aluminum front panel

Features

• 1U brushed black aluminum front panel for rack installation
• Built-in professional stereo digital quartz PLL radio tuner
• Tuning modes: manual, automatic and direct frequency input; high-sensitivity reception
• Channel browsing and playback with more than 60 preset stations stored in non-volatile memory
• Class AA amplification with dual-channel (2CH) output
• Full-function infrared remote control
• Dynamic color output-level spectrum display with 10 selectable display modes
• Antenna input: 75 Ω

Technical specifications

• Audio output: <500 mV, 10 kΩ, unbalanced
• Frequency range: AM: 522 kHz - 1620 kHz; FM: 87 MHz - 108 MHz
• Distortion: <0.01% at 1 kHz
• Signal-to-noise ratio: AM: >40 dB; FM: >45 dB
• Frequency response: 20 Hz - 18 kHz
• Power cord: 1.5 m (standard)
• Power supply: AC 220 V ±10%, 50 - 60 Hz
• Power consumption: 10 - 15 W
• Overall dimensions: 51 × 483 × 255 mm
• Net weight: 2.3 kg
