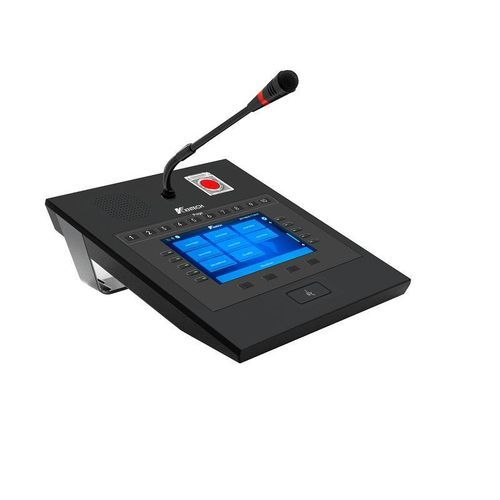

IP call station KNPA800miniR

PoEEthernet4.3"

Product Name
PA Call Station

Model & Basic Info
Model: KNPA800miniR
Size: 213 (L) x 190 (W) x 76 (H) mm (excluding microphone)
Material: ABS (Acrylonitrile Butadiene Styrene)

Overview
KNPA800miniR is a professional IP Network Paging Console designed for PAGA/PA systems and Safe Area control rooms and operation centers. It enables zone paging, emergency paging activation, and system status monitoring for mission-critical communications. The unit is engineered for continuous 24/7 operation with energy-saving standby features and is certified for life-safety voice evacuation systems.

Key Functional Features & Benefits

• Purpose-Built Design: Uncompromising reliability certified for safety (EN 54-16 and ISO 7240-16).
• Engineered for Professional Excellence: Optimized components for performance and longevity in demanding environments.
• 24/7 Operational Readiness: Continuous operation with intelligent standby energy saving.
• User-Centric Interface: Vibrant 4.3-inch TFT for clear, responsive, intuitive operation.
• Effortless Zone & Group Selection: Configure and select individual zones, pre-defined groups, or all-call broadcasts via expandable display.
• At-a-Glance Status Confirmation: Visual indicators for power, communication status, and push-to-talk activation.
• Superior Audio Management: Gooseneck unidirectional microphone for clear vocal capture; adjustable microphone sensitivity, volume control, and software-configurable parametric equalization.
• Seamless Integration of Audio Sources: 3.5 mm jack for wireless microphone input.
• Flexible Broadcasting Capabilities: Selective zone, group-zone, and all-call paging options; automated and scheduled announcements; pre-recorded message distribution.
• Priority for Emergency Alerts: Priority-based audio routing ensures emergency announcements override lower-priority audio.
• Enterprise-Grade Reliability & Integration: Power over Ethernet (PoE) operation and dual Ethernet ports for network redundancy.
• 100-key Paging Console with Guarded Emergency Key: 10 pages × 10 physical paging buttons, 4 function keys, one main paging key and red emergency key under safety cover.
• Secure and Encrypted Communication: Uses AES67 for audio and AES70 for control; encrypted and authenticated communications.

Specification Highlights

• Built-in Chime Tone: Supports automatic chime prior to live paging announcements; configurable via system settings.
• Concurrent Live Paging: Supports simultaneous live paging from multiple stations to non-overlapping zones.
• Zone Conflict Handling: Predefined priority/occupancy policy (override/queue/restriction) for overlapping paging requests.
• BGM & Live Paging Mixing (Ducking): Background music can be attenuated automatically during paging.
• Zone-Based Paging: Multi-zone selection and quick zone operations for daily paging and emergency broadcasting.

More Powerful Features

• 1. Product Positioning: Professional IP Network Paging Console for Safe Area control rooms and operation centers.
• 2. Key Features: One-touch emergency paging with covered red emergency key; manual alarm/emergency paging (General Alarm / Gas Alarm / All Clear); zone/group selection, All Call and One-touch paging; gooseneck unidirectional microphone with momentary PTT; 4.3" TFT color display for zone selection, call status and fault indication; system monitoring with fault acknowledge support.
• 3. Anti-misoperation Protection: Emergency key protected by flip cover; press-and-hold or confirmation pop-up configurable; user privilege control for authorized operations.
• 4. Mounting: Supports Desktop, Wall Mount, and Flush (Panel) Mounting; cut-out dimensions and mounting brackets available (optional).
• 5. IP Rating: Front panel protection IP22 minimum (indoor control room environment).
• 6. Microphone & PTT: Gooseneck unidirectional microphone with momentary (non-locking) PTT; release to stop paging.
• 7. Display & Indications: 4.3" TFT shows zone selection, call status and system information; status indications for power, operation and fault with event indication support.
• 8. Cybersecurity Support: Meets IEC 62443 requirements for secure access control, configurable user privileges and password policy; supports minimizing enabled ports/services and works with PAGA controller for encrypted control and unauthorized access prevention.
• 9. Area of Use: Designed for Safe Area control room applications. For Hazardous Areas, IECEx/ATEX certified field paging stations/telephones should be used as required.
• 10. Alarm Indication: Local alarm indication on 4.3" TFT with acknowledge/mute support; external alarm indication via PAGA Controller/Server integration (e.g., Fire & Gas Alarm / Integrated Control & Safety System) with acknowledge/mute support.

System & Application
Designed to integrate into PA/PAGA systems with system diagrams and application imagery illustrating typical deployments in control rooms and facility-wide PA networks.

Detailed Pictures
Detailed views show the unit front panel, display, microphone and mounting options.

Caractéristiques / Spécifications techniques

• Model: KNPA800miniR
• Dimensions: 213 x 190 x 76 mm (L x W x H) excluding microphone
• Material: ABS
• Display: 4.3" TFT color
• Microphone: Gooseneck unidirectional with momentary PTT
• Paging Keys: 100-key (10 pages × 10 buttons), 4 function keys, main paging key, guarded red emergency key
• Network: Dual Ethernet ports, PoE supported
• Certifications: EN 54-16, ISO 7240-16 (life-safety / voice evacuation)
• Protection Rating: Front panel IP22 (minimum)
• Audio Interfaces: 3.5 mm external microphone input
• Security: AES67 (audio), AES70 (control); IEC 62443 cybersecurity support
• Mounting: Desktop / Wall / Flush (Panel)
• Operational Mode: 24/7 readiness, energy-saving standby
